2288172-6
ZSFP plus STACKED 2X12 RCPT ASSY, EMI SPRING, SFP, SFP plus and zSFP plus | TE Connectivity 2288172-6
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2288172-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

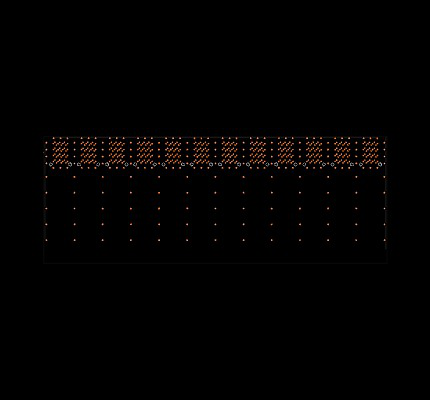

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2288172-6
| Part Name | 2288172-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Lightpipe Style | Standard |
| Centerline (Pitch) | .8 |
| Circuit Application | Signal |
| TE Internal Number | 2288172-6 |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Integrated Lightpipes | Yes |
| Cage Type | Stacked |
| Connector & Contact Terminates To | Printed Circuit Board |
| EMI Containment Feature Type | EMI Springs |
| PCB Thickness (Recommended) | 1.5 |
| Included Lightpipe | Yes |
| Included Heat Sink | No |
| Number of Positions | 480 |
| Connector System | Cable-to-Board |
| Tail Plating Material | Tin |
| Cage Material | Nickel Silver Alloy |
| Heat Sink Compatible | No |
| Pluggable I/O Applications | zSFP+ Thermally Enhanced |
| Form Factor | zSFP+ Stacked (SFP28) |
| Operating Temperature Range | -40 – 185 |
| Lightpipe Configuration | Quad Triangular (Inner & Outer) |
| Packaging Method | Tray |
| Tail Length | 1.8 |
| Number of Ports | 24 |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| RoHS | True |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) | 32 |
| Product Type | Cage Assembly with Integrated Connector |
| UL Flammability Rating | UL 94V-0 |
| For Use With Pluggable I/O Products | zSFP+ SMT Connector |
| Contact Mating Area Plating Thickness | .76 |
| Port Matrix Configuration | 2 x 12 |
| Sealable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
