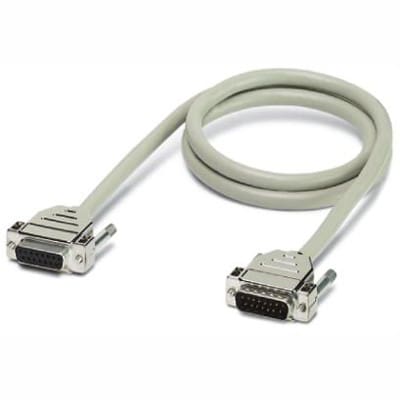

Cable Assembly;round cable;DSUB; 15 position;CABLE-D15SUB/B/S/400/KONFEK/S | Phoenix Contact 2302104
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2302104 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

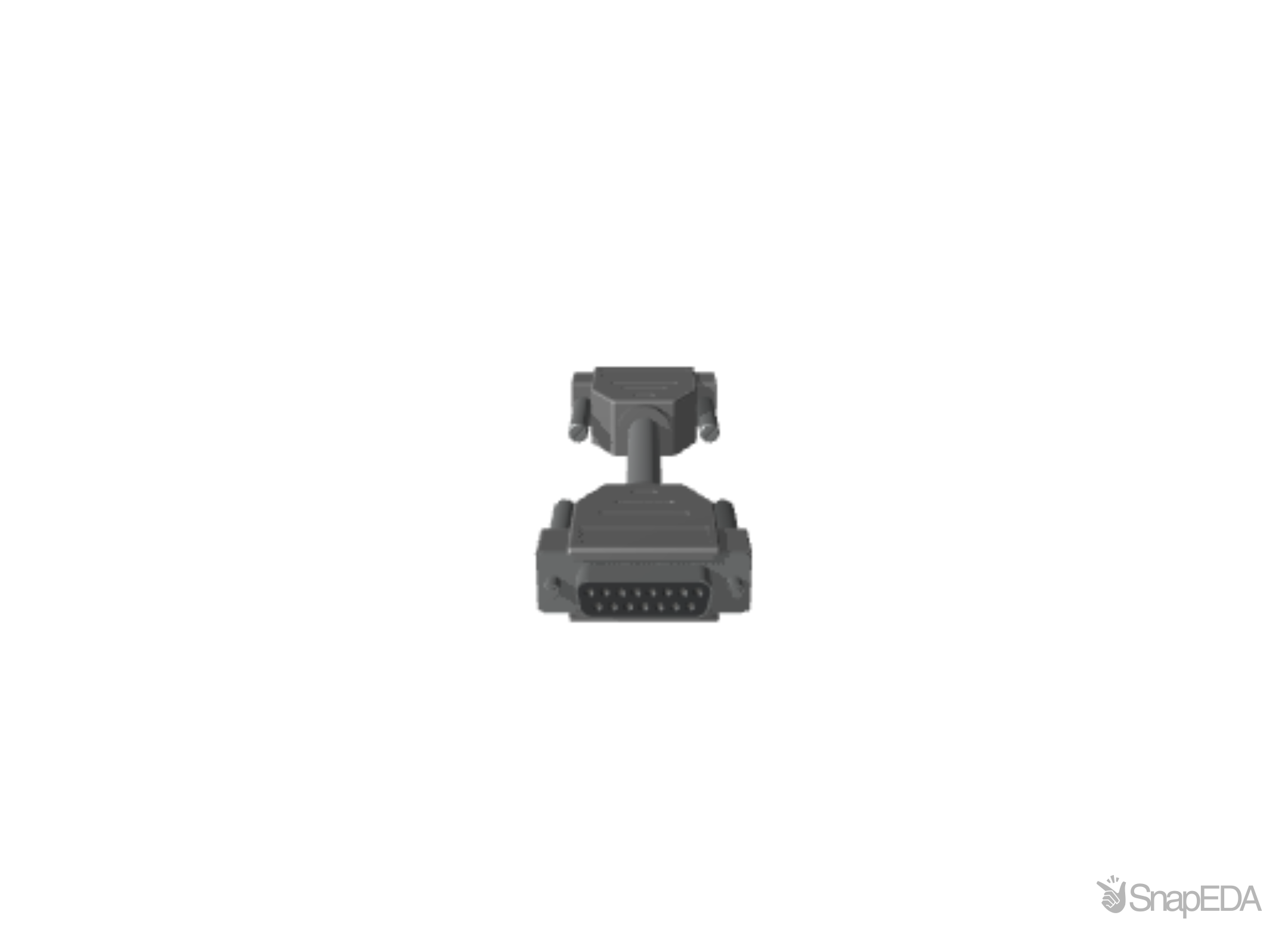

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2302104
| Part Name | 2302104 |
| Manufacturer | Phoenix Contact |
| Category | Wire & Cable |
| Suitable For Plc Output Card | True |
| Width | 39.5 |
| Design Of The Electrical Connection (head 1) | D-SUB |
| GTIN | 4017918893064 |
| Function | PLC other devices |
| Product Description | Cable |
| Suitable For Analog Signals | True |
| Gtin (ean) Code | 4017918893064 |
| Suitable For Digital Signals | True |
| Internal Article Number | 2302104 |
| Number Of The Executions Of The Housing Parts | 0 |
| Depth | 128.9 |
| Type Of Enveloping Body | enveloping body cuboid |
| Length | 4 |
| Manufacturer Product Designation | Cable |
| Suitable For Plc Input Card | True |
| RoHS | True |
| Design Of The Electrical Connection (head 2) | D-SUB |
| Product Article Number Of Manufacturer | 2302104 |
| Pole Number | 15 |
| Net Weight | 0.456 |
| Height | 15.2 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Connector 2 | 15 Pin D-sub |
| Length | 4 (m) |
| Connector 1 | 15 Pin D-sub |
| Connector 2 Gender | Female |
| Connector 1 Gender | Male |
