2306-V-RC

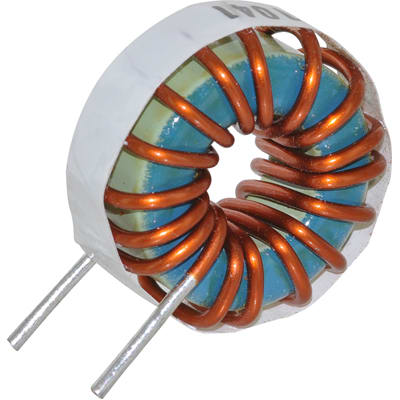

Inductor,High Current Toroidal,27uH,0.008 Ohm DCR Max,Vertical Mount | Bourns 2306-V-RC
Availability: Out of Stock
Package Type: RADIAL
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2306-V-RC by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

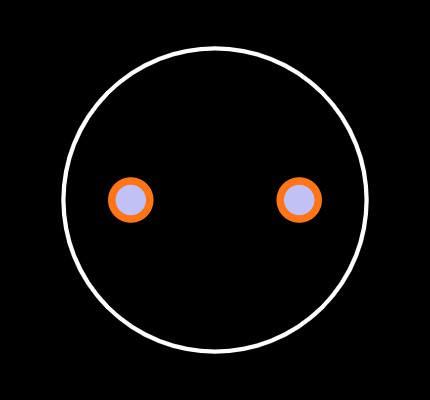

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

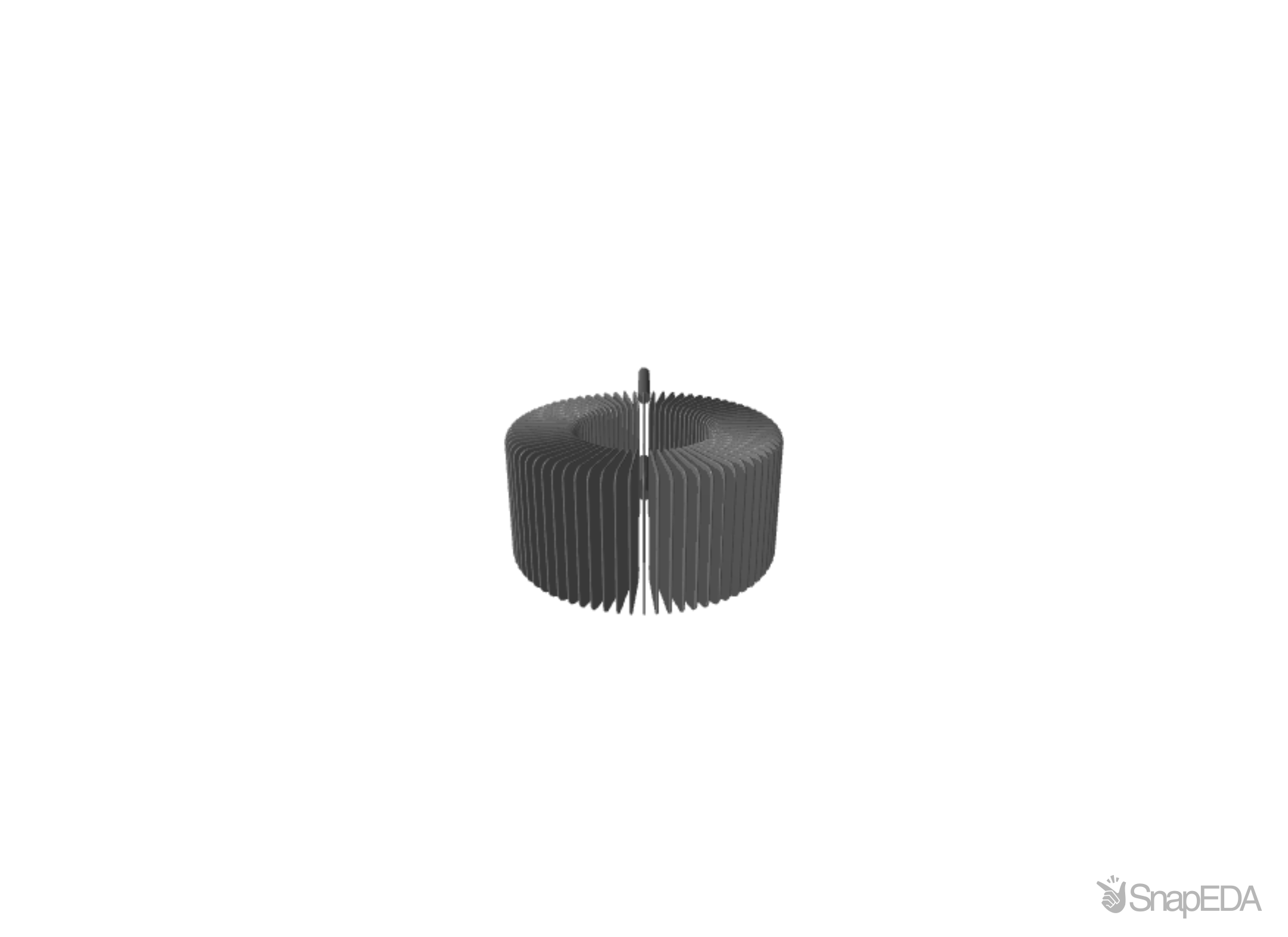

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2306-V-RC
| Part Name | 2306-V-RC |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 32.51 (mm) |
| Dimensions | 32.512 (Dia.) x 16.51 (mm) |
| Lead Diameter | 1.6764 (mm) |
| Inductance | 27 μH |
| Maximum Dc Current (A) | 15.6 (A) |
| Series | 2300 |
| Tolerance | ±15 (%) |
| Height | 16.51 (mm) |
| Depth | 16.51 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Dc Resistance | 8 (mΩ) |
| Mounting Type | Radial |
| Lead Pitch | 14.224 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Terminal Type | Through Hole |
No issues have been reported for the 2306-V-RC
