2325811-3

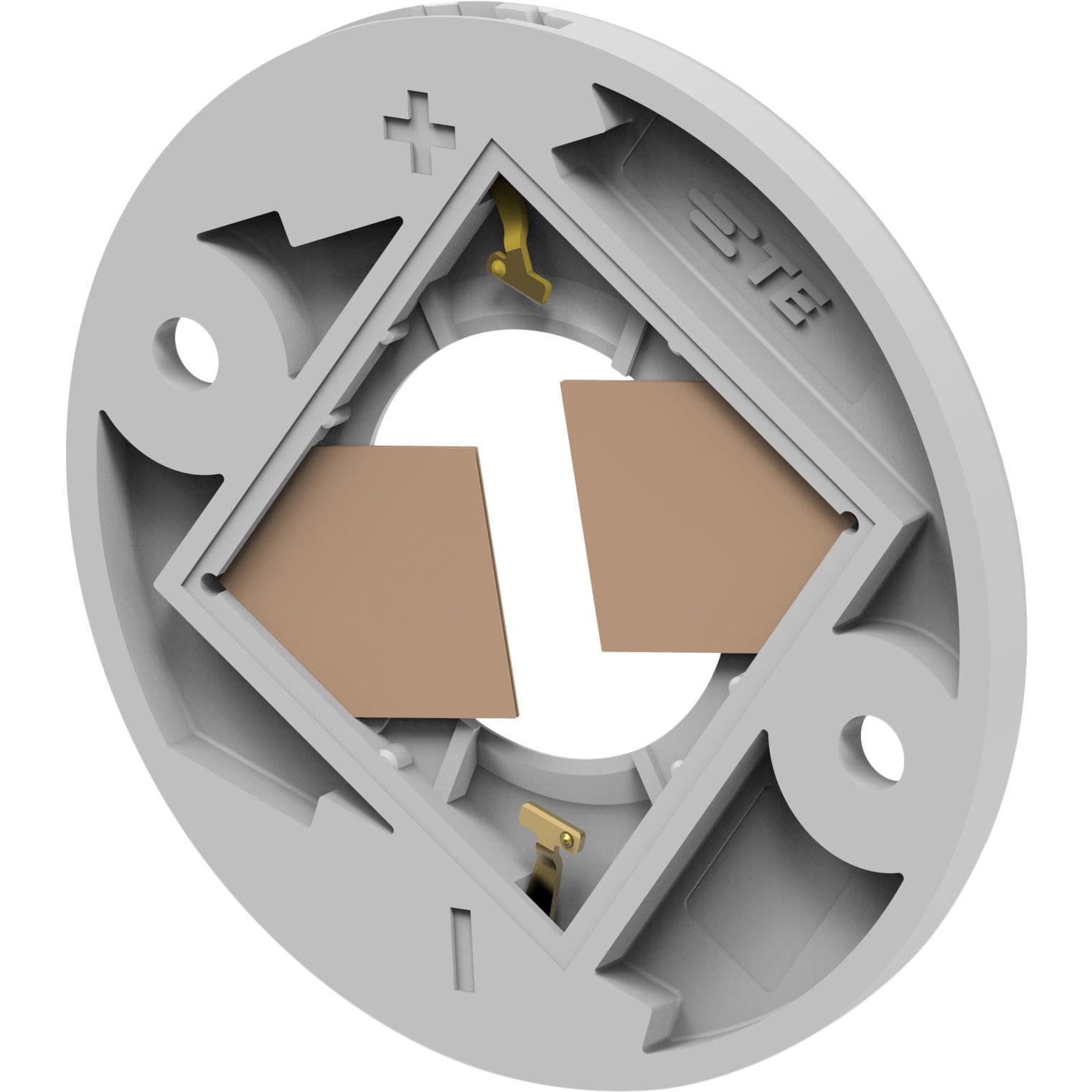

Lumawise Z45 Led Holder, 20X24, Panhead Screw | TE Connectivity 2325811-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2325811-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2325811-3
| Part Name | 2325811-3 |
| Manufacturer | TE Connectivity |
| COB Substrate Thickness | 1 |
| Category | Electronic Components |
| Driver on Board | No |
| Sealable | No |
| Enables Zhaga Compatibility | Zhaga Inspired |
| Operating Temperature Range | -40 – 105 |
| Circuit Application | Power |
| LED Manufacturer | Panasonic |
| TE Internal Number | 2325811-3 |
| Number of Positions | 1 |
| Housing Material | PBT GF |
| Contact Current Rating (Max) (A) | 3 |
| Optics Alignment | No |
| Operating Voltage (V) | 60 |
| Programmable | No |
| Product Type | LED Holder |
| Connector & Contact Terminates To | Printed Circuit Board |
| RoHS | True |
| Termination Method to Wire & Cable | Poke-In |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
