2328702-8
8 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
Get this part
Available from the TE Store
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2328702-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

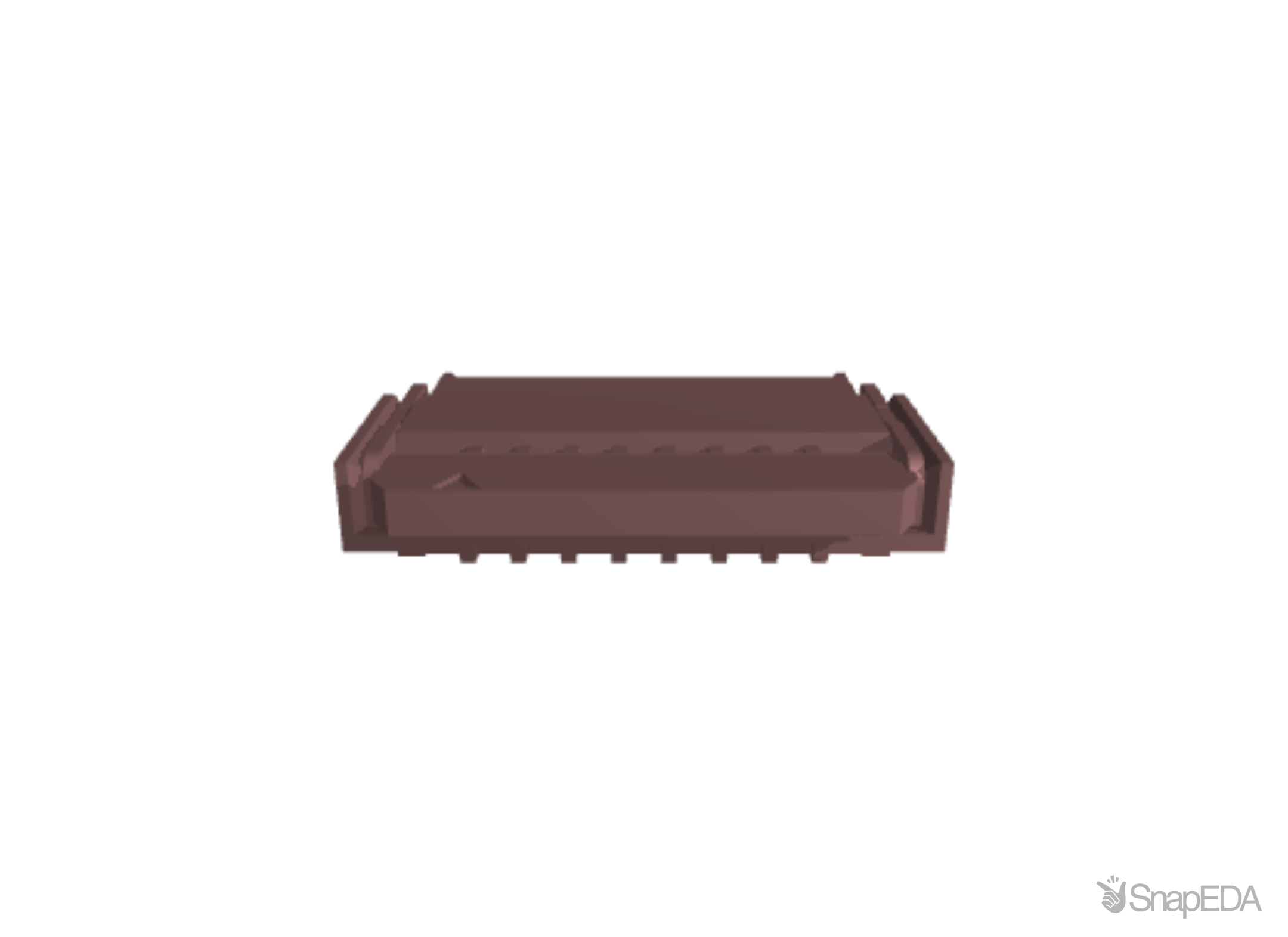

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2328702-8
| Part Name | 2328702-8 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .5 |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Wire/Cable Type | FPC/FFC |
| Operating Voltage (V) | 50 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Standard Flat |
| TE Internal Number | 2328702-8 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Connector Height | .039 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Flex Cable Thickness | .01 |
| Sealable | No |
| Connector Length | 6 |
| Operating Temperature Range | -40 – 185 |
| Shielded | No |
| Packaging Method | Tape & Reel |
| Connector Type | Connector Assembly |
| Contact Configuration | Signal |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Gold |
| Number of Positions | 8 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Copper Alloy |
| Stamped | No |
| Color | Black/Natural |
| Contact Current Rating (Max) (A) | .5 |
| Type of Connector | Easy Mating |
| Contact Mating Location | Dual Side |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2328702-8 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
28,000
|
28,000 x $0.11
|
Visit Site | |
|
★ Featured
|
20,717
|
|
Visit Site | |
|
★ Featured
|
56,222
|
|
Visit Site | |
|
★ Featured
Verical
|
10,000
|
|
Visit Site | |
|
★ Featured
|
209,858
|
1,040 x $0.29
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
28,000 x $0.12
|
Visit Site | |
| Farnell UK |
56,000
|
|
Visit Site | |
| Heilind Americas |
15,000
|
|
Visit Site | |
| Newark |
12,085
|
|
Visit Site | |
| Onlinecomponents |
42,500
|
|
Visit Site | |
| Rapid Electronics |
|
28,000 x $0.23
|
Visit Site | |
| Sager |
|
56,000 x $0.14
|
Visit Site | |
| TE Store |
6,054
|
|
Visit Site | |
| TME |
28,000
|
28,000 x $0.13
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| element14 Singapore |
12,085
|
|
Visit Site |
No issues have been reported for the 2328702-8
