2332157-2

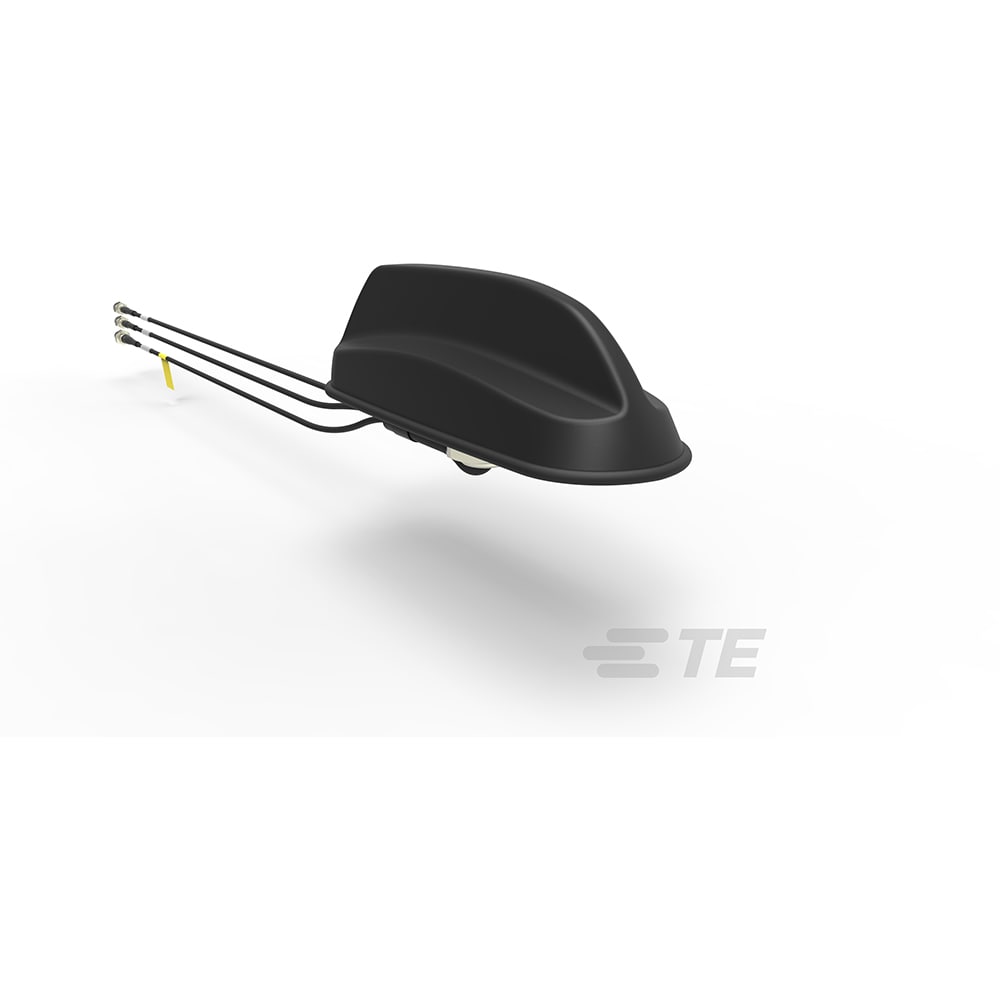

Multi Function MiMo Antenna 2G/3G/4G+GNSS | TE Connectivity 2332157-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2332157-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2332157-2
| Part Name | 2332157-2 |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Product Weight | 9.17 |
| Mounts To | Vehicle Rooftop |
| Mounting Retention Type | Adhesive |
| Band Type | Quad Band |
| Product Width | 2.4 |
| Cable Insulation Diameter (Max) | .11 |
| Frequency Band | 1710 – 2170 |
| Antenna Connector Type | SMA Plug |
| VSWR (Max) | <2:1 |
| TE Internal Number | 2332157-2 |
| Product Height | 2.2 |
| Impedance | 50 |
| Antenna Protocol | GPS |
| Product Length | 6.77 |
| Region | Global |
| Packaging Method | Bag/Box |
| Number of Ports | 3 |
| Wireless Standard | LTE, UMTS, US Dual, EU Triband & WCDMA |
| Wireless Application | GPS |
| RoHS | True |
| Polarization | Right Hand Circular |
| Antenna Type | Enclosure |
| Application by Region | GPS - Global - 1565 – 1585 MHz |
| Antenna Style | External |
| Gain (Max) | 5 |
| Antenna Connection Type | Cable Assembly |
| Cable Length | 11.811 |
