2349202-6
40 (20 x 2) Position zSFP+ Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
Get this part
Available from the TE Store
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2349202-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

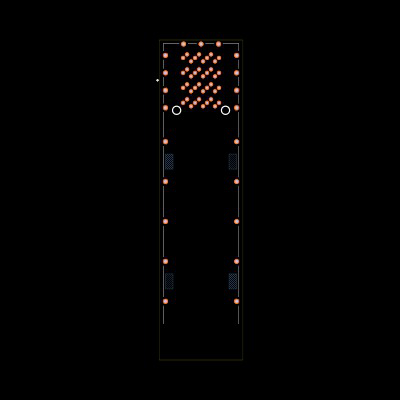

Footprint
No web preview
This Footprint is Available for

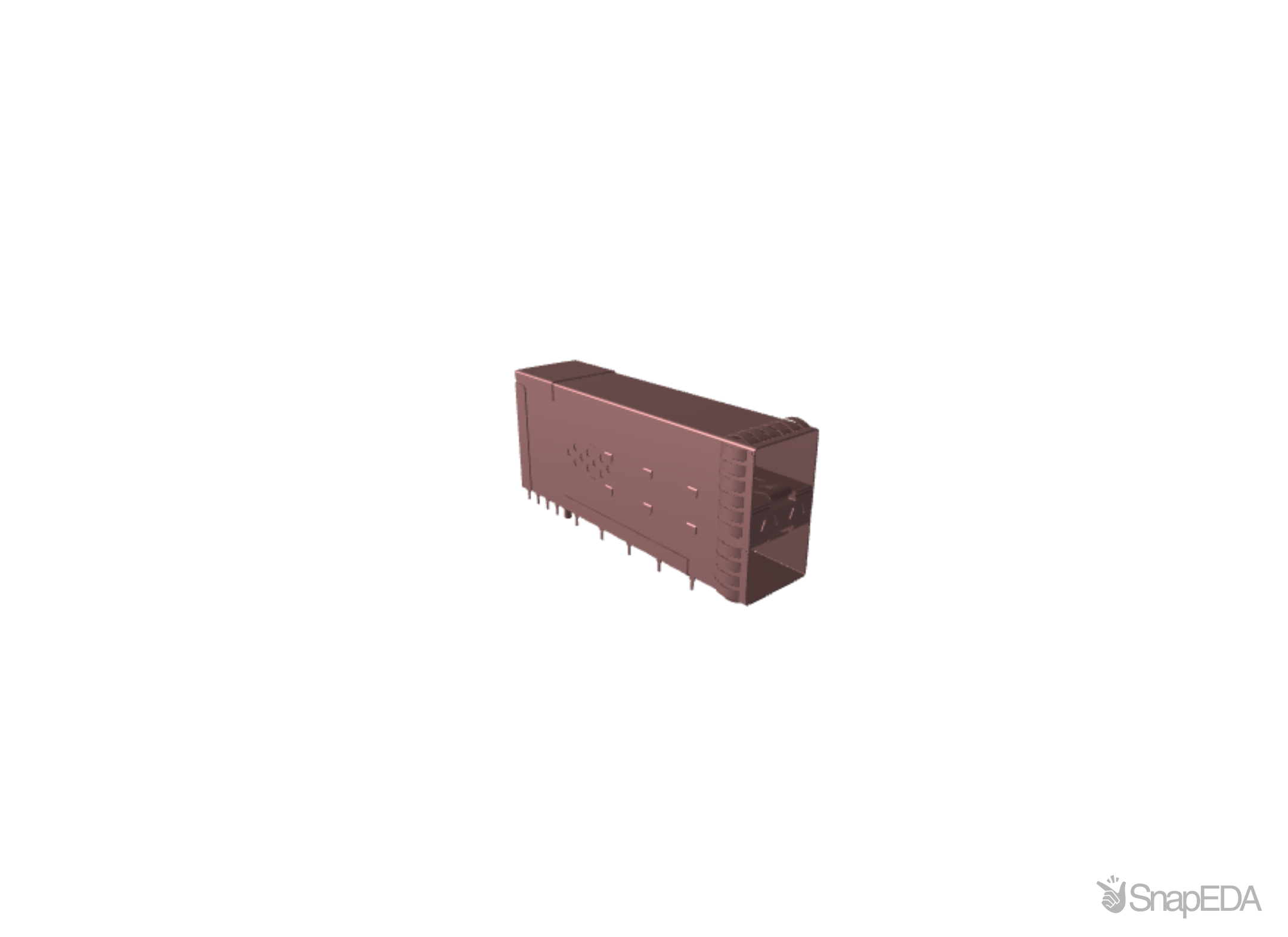

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2349202-6
| Part Name | 2349202-6 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .018 |
| Circuit Application | Signal |
| TE Internal Number | 2349202-6 |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Integrated Lightpipes | Yes |
| Cage Type | Stacked |
| Pluggable I/O Accessory Type | Dust & EMI Cover |
| Connector & Contact Terminates To | Printed Circuit Board |
| EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | No |
| Included Heat Sink | No |
| Number of Positions | 20 |
| Pluggable I/O Applications | SFP56 |
| Form Factor | zSFP+ Stacked (SFP56) |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -67 – 221 |
| Number of Ports | 2 |
| RoHS | True |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) | 56 |
| Product Type | Cage Assembly with Integrated Connector |
| Port Matrix Configuration | 2 x 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
