Battery Holder, THM, 2 Cell, Cell Size AAA, Plastic | Keystone Electronics 2468
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2468 by Keystone and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

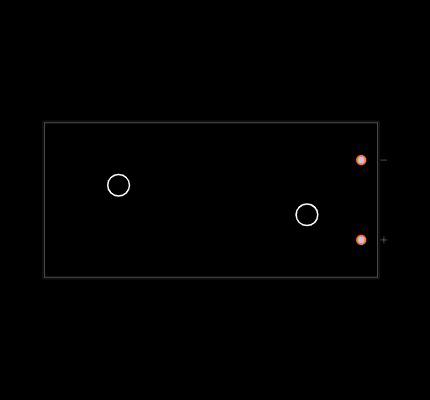

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2468
| Part Name | 2468 |
| Manufacturer | Keystone Electronics |
| Category | Power Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 53 x 24.6 x 13 (mm) |
| Mount | PCB |
| Number Of Cells | 2 |
| Body Material | PP |
| For Battery Size | AAA |
| Terminal Contact Type | Coil Spring |
| Type | Battery Holder |
| Terminal Contact Material | Nickel Plated Spring Steel |
