24C65/SM
64K, 8K X 8 SMART SERIAL8 SOIJ .208in TUBE | Microchip Technology Inc. 24C65/SM
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 24C65/SM by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

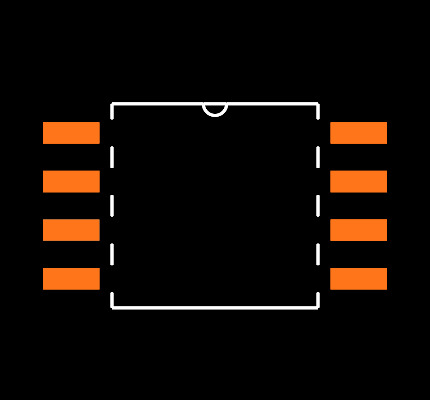

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 24C65/SM
| Part Name | 24C65/SM |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Data Retention | 200 (yr) |
| Dimensions | 5.33 x 5.38 x 1.98 (mm) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Organisation | 8K x 8 bit |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Number Of Bits Per Word | 8 (bit) |
| Pin Count | 8 |
| Memory Size | 64 (kbit) |
| Package Type | SOIJ |
| Interface Type | Serial-I2C |
| Programming Voltage (V) | 4.5 → 6 (V) |
| Maximum Random Access Time | 900 (ns) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Number Of Words | 8K |
