25SVPG270M
Series/Type: SVPG, Rated voltage (V): 25, Capacitance (µF): 270, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to +105, Endurance(h)@Temp.: 5000@105°C, Rated Ripple Current (mArms): 5350, Rated Ripple Current(temp.) (°C): 105, Rated Ripple Current(freq.) (kHz): 100, ESR (mΩ): 12, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 1350, Dissipation Factor [Max.]: 0.12, Diameter (mm): 8, Body Length (mm): 11.9, Size Code: E12
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 25SVPG270M by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

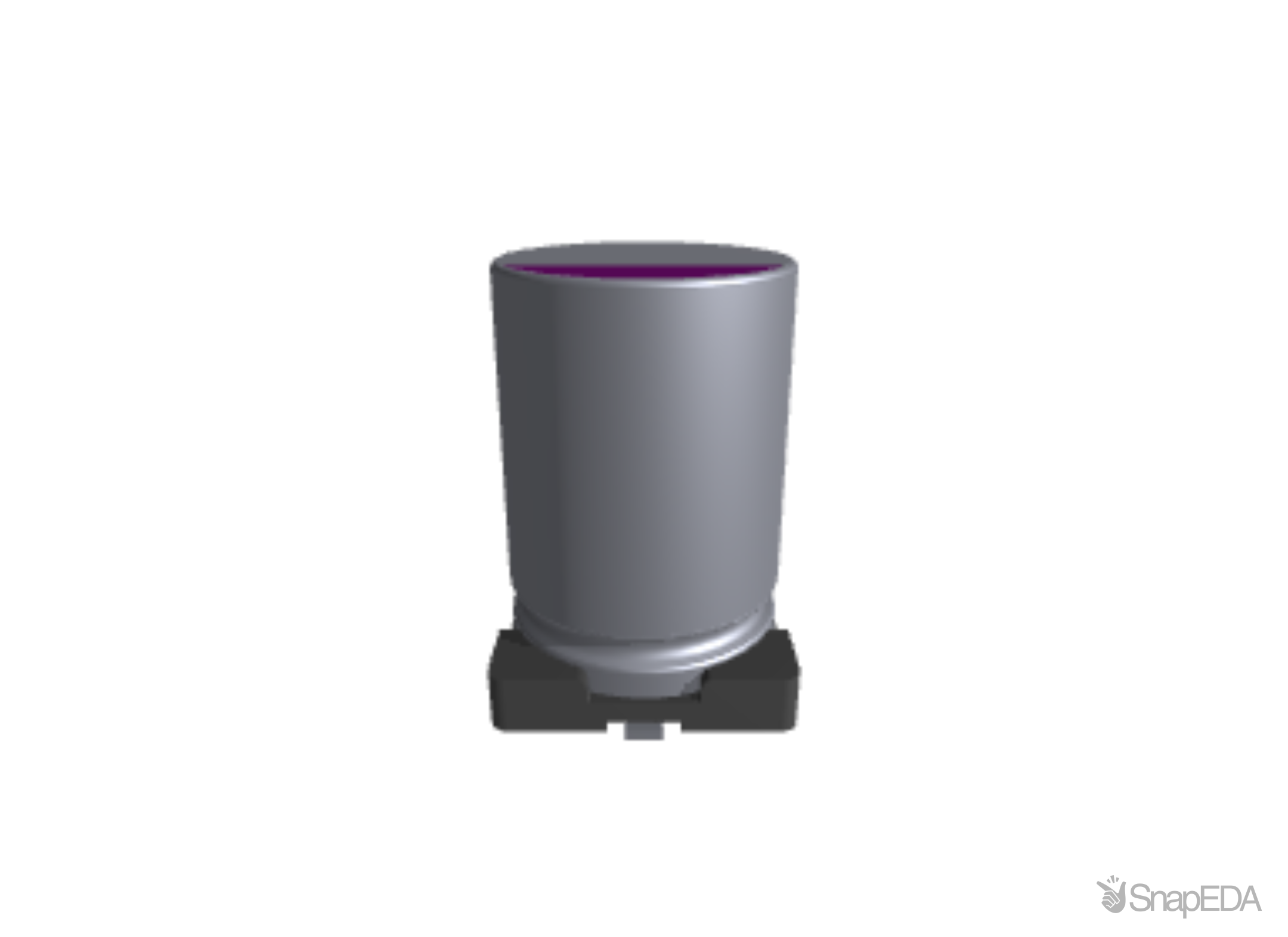

3D Model
