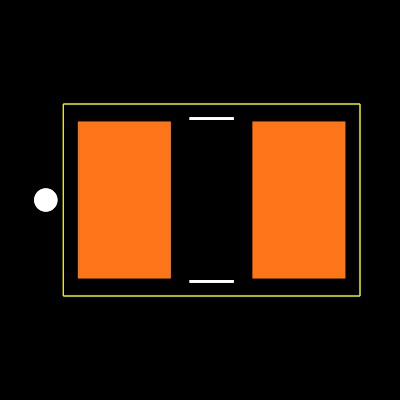

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
25TDC15MB
Series/Type: TDC, Rated Voltage (V): 25, Capacitance (µF): 15, Tolerance on Capacitance (%): -/+20, Category Temperature Range (°C): -55 to +125, Endurance@Temp.: 1000h@125°C, Rated Ripple Current (mArms): 900, Rated Ripple Current (temp.) (°C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 100, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 112.5, Dissipation Factor [Max.]: 0.1, Body Length (mm): 3.5, Body Width (mm): 2.8, Body Height (mm): 1.9, Size Code: B2
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 25TDC15MB by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

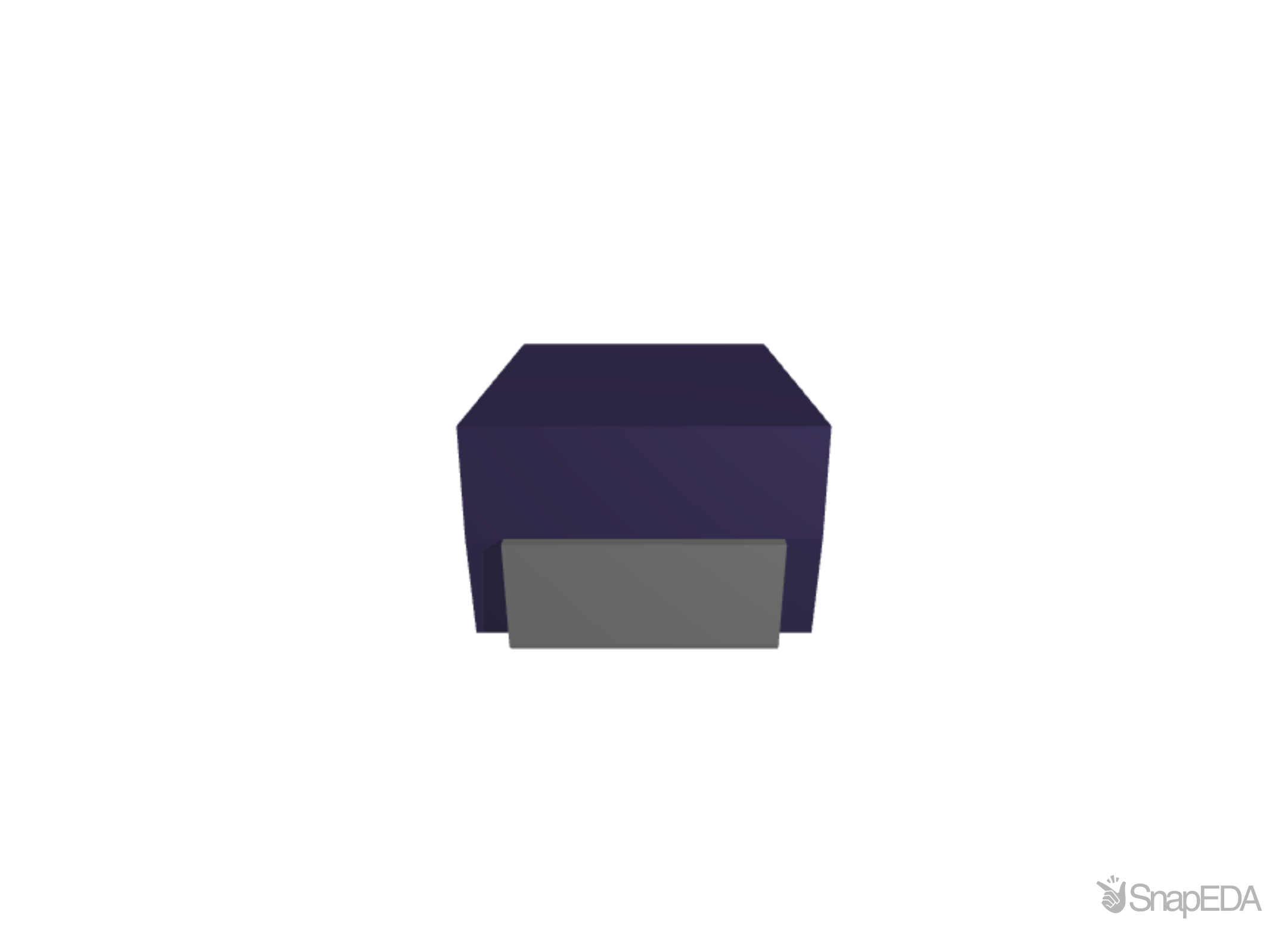

3D Model
