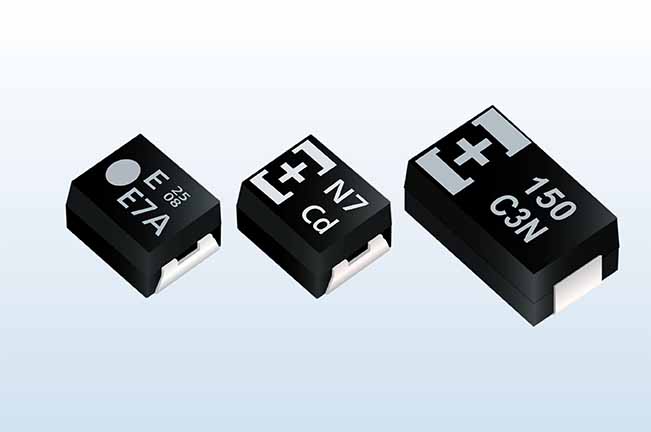

25TDC68MD3
Series/Type: TDC, Rated Voltage (V): 25, Capacitance (µF): 68, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to +125, Endurance@Temp.: 1000h@125°C, Rated Ripple Current (mArms): 1400, Rated Ripple Current (temp.) (°C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 70, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 170, Dissipation Factor [Max.]: 0.1, Body Length (mm): 7.3, Body Width (mm): 4.3, Body Height (mm): 2.8, Size Code: D3L
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 25TDC68MD3 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

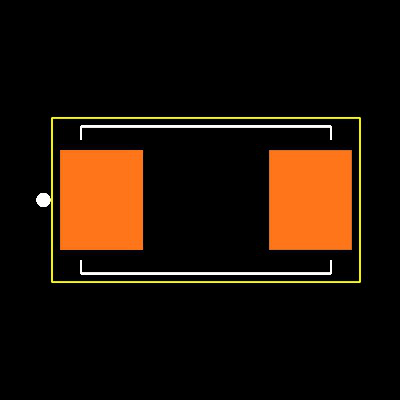

Footprint
No web preview
This Footprint is Available for

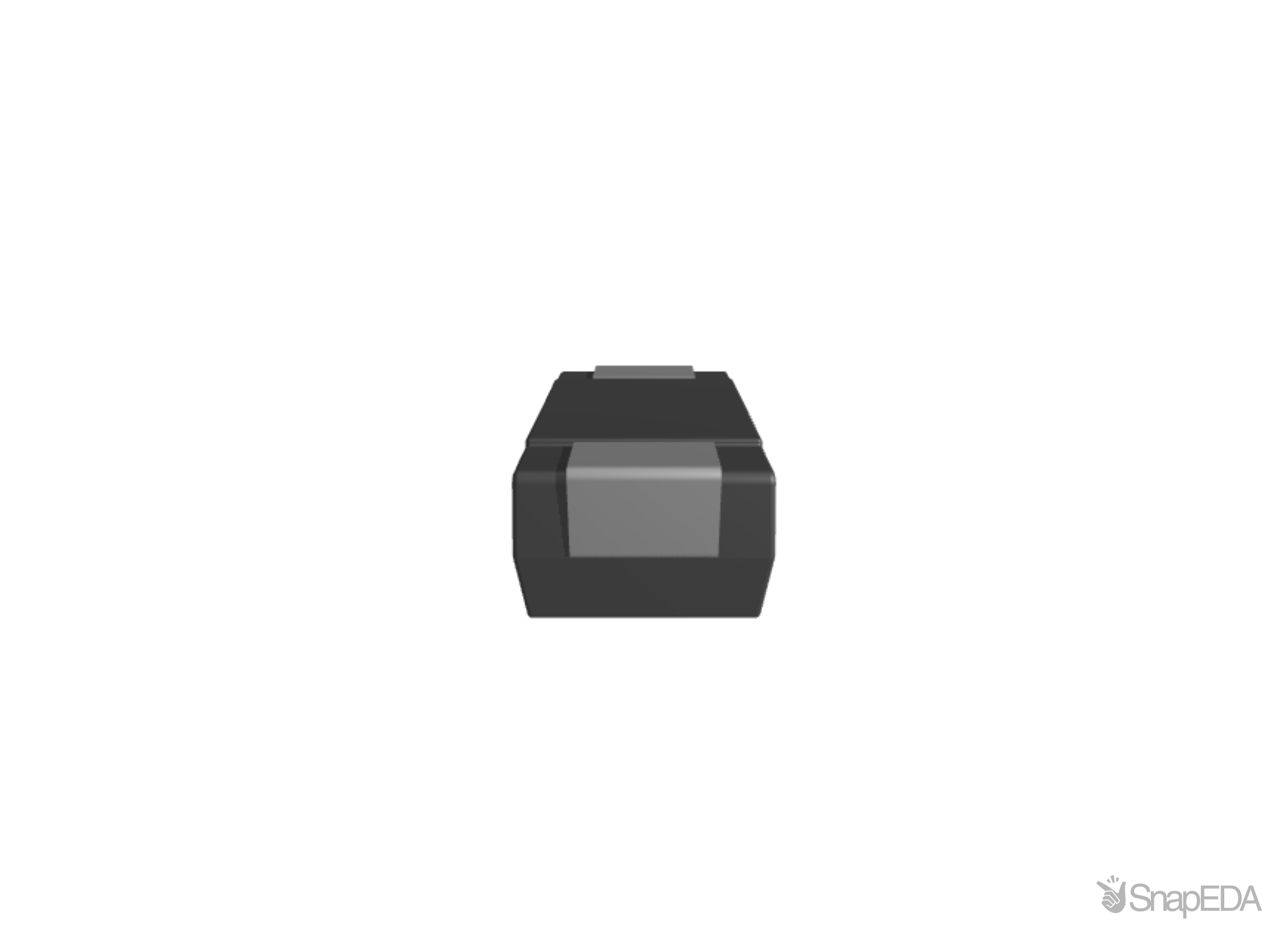

3D Model
