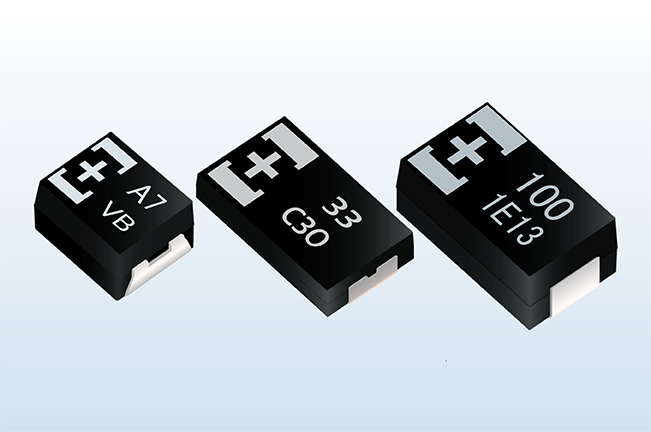

25TQC15MB
Series/Type: TQC, Rated Voltage (V): 25, Capacitance (µF): 15, Tolerance on Capacitance (%): -/+20, Category Temperature Range (°C): -55 to +105, Endurance@Temp.: 2000h@105°C, Rated Ripple Current (mArms): 900, Rated Ripple Current (temp.) (°C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 100, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 112.5, Dissipation Factor [Max.]: 0.1, Body Length (mm): 3.5, Body Width (mm): 2.8, Body Height (mm): 1.9, Size Code: B2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 25TQC15MB by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

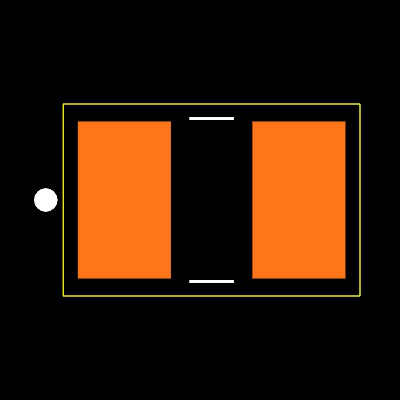

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 25TQC15MB
| Part Name | 25TQC15MB |
| Manufacturer | Panasonic |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 25TQC15MB by Panasonic from major distributors.
