25TQC68MD3
Series/Type: TQC, Rated Voltage (V): 25, Capacitance (µF): 68, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to +105, Endurance@Temp.: 2000h@105°C, Rated Ripple Current (mArms): 1400, Rated Ripple Current (temp.) (°C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 70, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 170, Dissipation Factor [Max.]: 0.1, Body Length (mm): 7.3, Body Width (mm): 4.3, Body Height (mm): 2.8, Size Code: D3L
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 25TQC68MD3 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

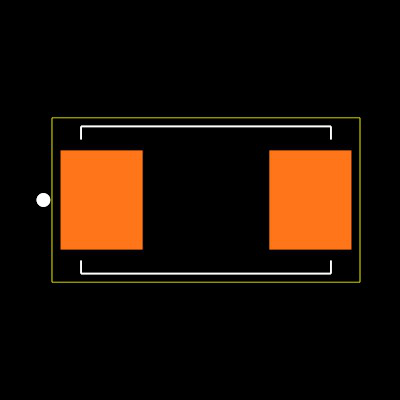

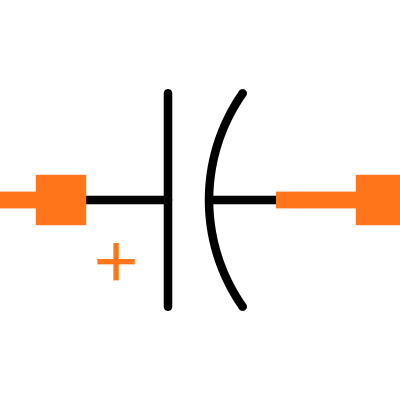

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

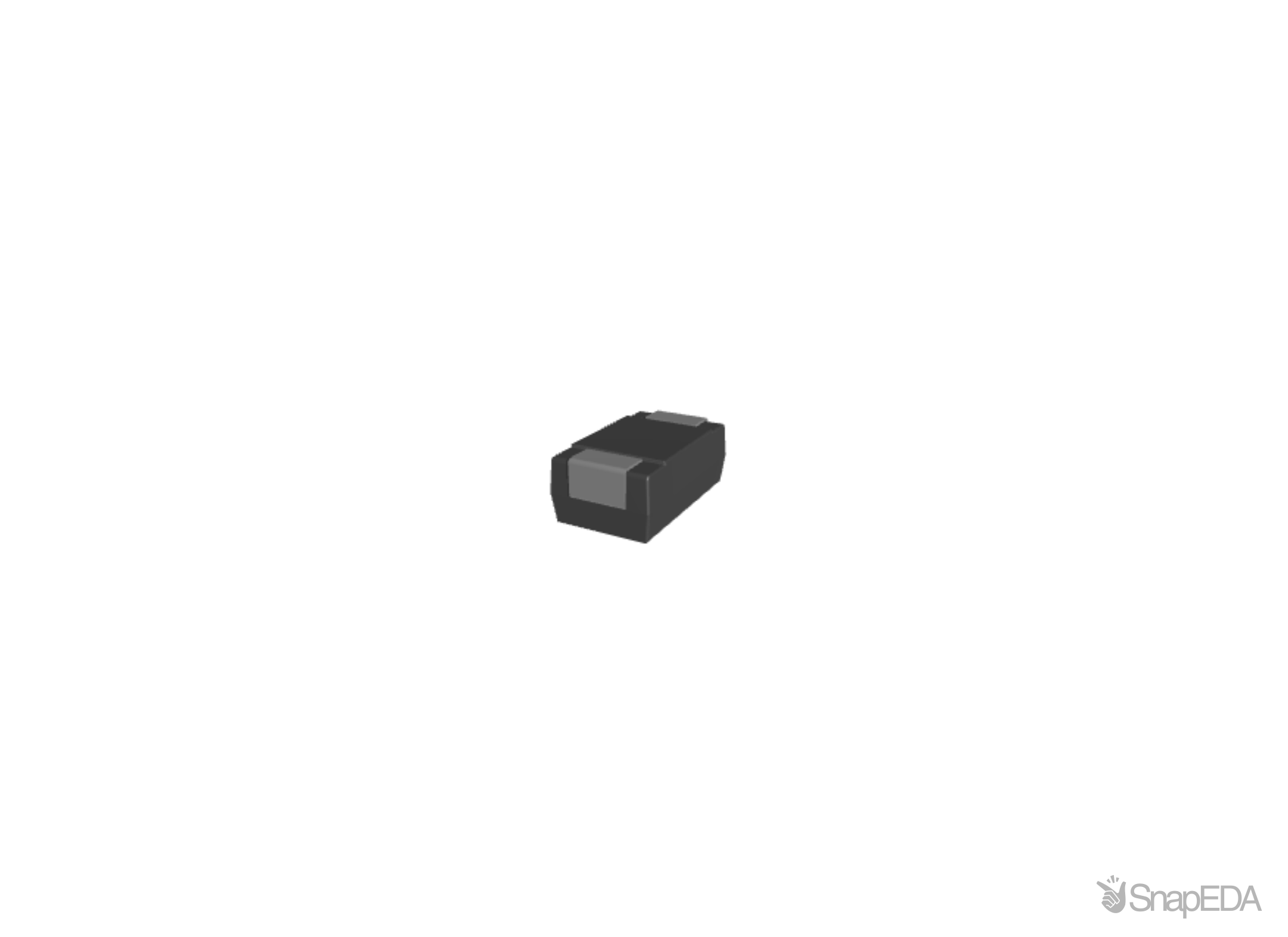

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 25TQC68MD3
| Part Name | 25TQC68MD3 |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the 25TQC68MD3
