26-60-4050

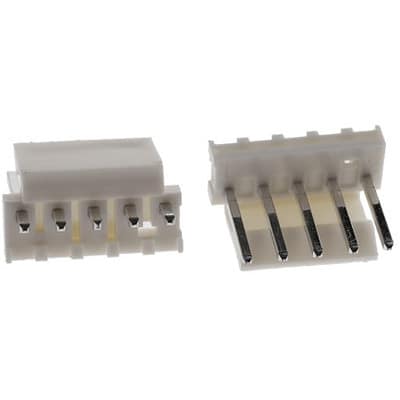

Headers VERT PCB HDR 5P TIN FRICTION LOCK | Molex Incorporated 26-60-4050
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 26-60-4050 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

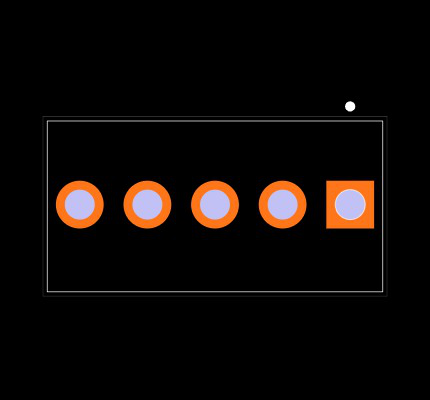

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 26-60-4050
| Part Name | 26-60-4050 |
| Manufacturer | Molex |
| Category | Connectors |
| Design Resource | https://www.molex.com/molex/custom-cable-creator/snapeda |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Unshrouded |
| Tail Pin Length | 3.56 (mm) |
| Current Rating (A) | 7.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600 V ac/dc |
| Series | KK 396 |
| Body Orientation | Straight |
| Pitch | 3.96 (mm) |
| Connector System | Wire to Board |
| Gender | Male |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Brass |
| Number Of Contacts | 5 |
| Series Number | 41791 |
Inventory for the 26-60-4050 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10,962
|
|
Visit Site | |
|
★ Featured
|
9,600
|
900 x $0.33
|
Visit Site | |
| Avnet America |
9,907
|
|
Visit Site | |
| Chip One Stop |
19,244
|
|
Visit Site | |
| Compona AG |
|
9,600 x $0.29
|
Visit Site | |
| Conrad |
74
|
1 x $0.27
|
Visit Site | |
| Farnell UK |
26,357
|
|
Visit Site | |
| Heilind Americas |
10,391
|
|
Visit Site | |
| Interstate Connecting Components |
2,078
|
|
Visit Site | |
| Newark |
9,907
|
|
Visit Site | |
| Onlinecomponents |
11,529
|
|
Visit Site | |
| Powell Electronics |
19,328
|
|
Visit Site | |
| RS Americas |
13
|
|
Visit Site | |
| Sager |
19,879
|
|
Visit Site | |
| TME |
404
|
|
Visit Site | |
| TTI Americas |
52,127
|
|
Visit Site | |
| Verical |
10,041
|
800 x $0.34
|
Visit Site | |
| element14 Singapore |
6,989
|
|
Visit Site |
No issues have been reported for the 26-60-4050
If you experienced any issues with the symbol or footprint, please report it.
