2693020

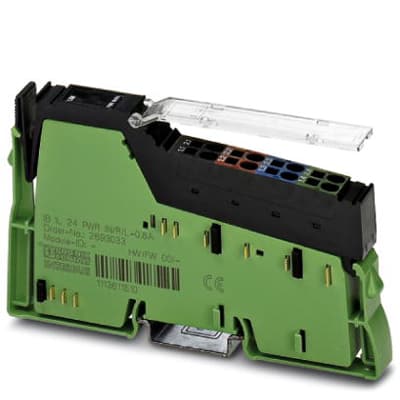

Inline Boost Terminal IB IL 24 PWR IN/R/L-0.8A-PAC Inline Series | Phoenix Contact 2693020
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2693020 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2693020
| Part Name | 2693020 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Transmission Standard | None |
| Width | 12.15 |
| GTIN | 4046356447416 |
| Power Loss, Static, Current-independent [pls] (A) | 0.6 |
| Number Of Hw Interfaces Serial Rs232 | 0 |
| Product Description | Feed-in module |
| Number Of Hw Interfaces Industrial Ethernet | 0 |
| Gtin (ean) Code | 4046356447416 |
| Internal Article Number | 2693020 |
| Number Of The Executions Of The Housing Parts | 0 |
| Number Of Hw Interfaces Parallel | 0 |
| Supported Protocol | Local bus |
| Mounting Design | Assembly |
| Safety Integrity Level (sil) | without |
| Depth | 70.43035 |
| Type Of Enveloping Body | enveloping body cuboid |
| Design Of Electrical Connection | Spring-cage connection |
| Manufacturer Product Designation | Feed-in module |
| Number Of Hw Interfaces Profinet | 0 |
| Product Article Number Of Manufacturer | 2693020 |
| Number Of Communications | 0 |
| Degree Of Protection | IP20 |
| Performance Level Acc. To En Iso 13849-1 | without |
| Net Weight | 0.065 |
| Height | 120.11077 |
| Supply Voltage Type (V) | DC |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of I/O | 1 |
| Series | IB IL |
| Number Of Safety Inputs | 2 |
| Supply Voltage (V) | 24 V |
