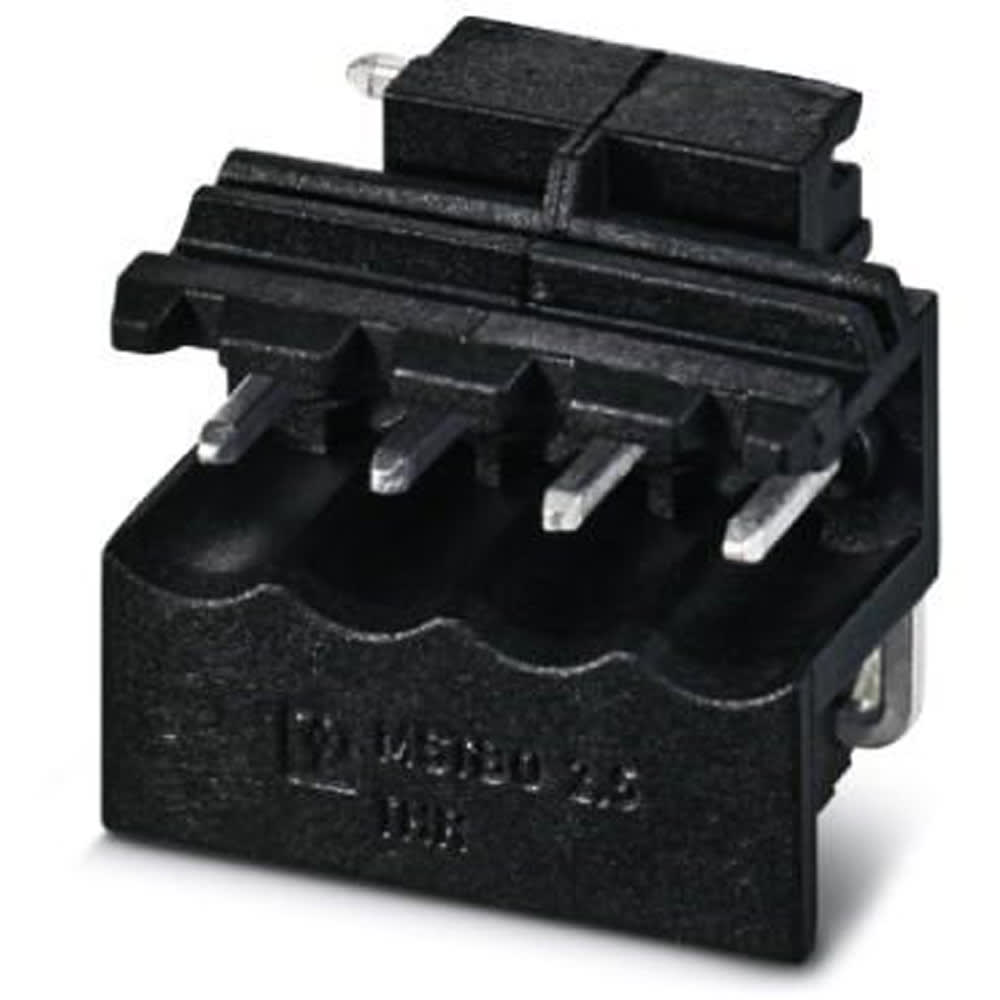

Terminal block;PCB;Header;Male Pins;Shrouded (2 Side);4 position;12A;400V;Solder | Phoenix Contact 2697194
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2697194 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2697194
| Part Name | 2697194 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 16 |
| Width | 19.95 |
| GTIN | 4046356040273 |
| Type Of Interlock | without |
| Product Description | PCB header |
| Gtin (ean) Code | 4046356040273 |
| Internal Article Number | 2697194 |
| Color Of Housing | black |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Depth | 15.35 |
| Design Of Electrical Connection | THR soldering |
| Manufacturer Product Designation | PCB header |
| RoHS | True |
| Material Of The Contact Coat | Tin |
| Assembly Type | THR soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 2697194 |
| Material Of Insulation | PA |
| Pole Number | 4 |
| Height | 16.5 |
| Material Of The Contact | Copper |
| Application Standards | IECÂ 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pluggable Terminal Block Type | Header |
| Series | 5/ 4-G1L THRR44 BK, MSTBO 2 |
| Body Orientation | Right Angle |
| Number Of Rows | 1 |
| Pitch | 5 (mm) |
| Number Of Contacts | 4 |
