2700775

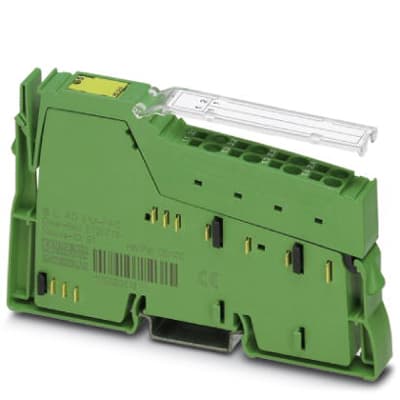

Inline Output Terminal; 2 Outputs; IB IL AO 2/UI-PAC Inline Series | Phoenix Contact 2700775
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2700775 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2700775
| Part Name | 2700775 |
| Manufacturer | Phoenix Contact |
| Number Of Hw Interfaces Parallel | 0 |
| Category | PLCs & HMIs |
| Number Of Hw Interfaces Profinet | 0 |
| Certificate/approval | CE-compliant |
| Supported Protocol | other bus systems |
| Product Article Number Of Manufacturer | 2700775 |
| Product Description | Analog module |
| Number Of Hw Interfaces Industrial Ethernet | 0 |
| Net Weight | 0.066 |
| Height | 120.11077 |
| Degree Of Protection | IP20 |
| Width | 12.2 |
| Depth | 70.43035 |
| Type Of Enveloping Body | enveloping body cuboid |
| GTIN | 4046356639965 |
| Manufacturer Product Designation | Analog module |
| Number Of The Executions Of The Housing Parts | 0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | IB IL AO 2/UI-PAC |
| Dimensions | SEE DATASHEET |
| Output Type | Analogue |
| Distrelec Product Id | 30348009 |
