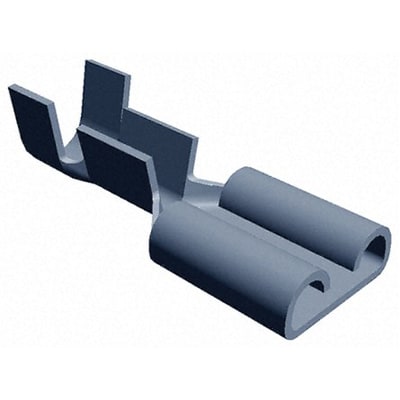

280001-9
0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 280001-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 280001-9
| Part Name | 280001-9 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Fully Insulated | No |
| Wire/Cable Type | Regular Wire |
| Insulated | No |
| Wire Stop | No |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .41 |
| Connection Capacity | Single |
| TE Internal Number | 280001-9 |
| UL Rating | Listed |
| Overall Length | .748 |
| Line | Premier |
| Contact Base Material | Brass |
| Terminal Type | Receptacle |
| Operating Temperature Range | -40 – 230 |
| Terminal & Splice Type | Receptacle |
| CSA Certified | Yes |
| Packaging Method | Strip/Reel |
| Packaging Quantity | 7000 |
| Terminal Orientation | Straight |
| Accepts Wire Insulation Diameter Range | 3 – 4.3 |
| Barrel Type | Open |
| Insertion Force | Normal |
| RoHS | True |
| Mating Tab Width | .25 |
| Sealable | No |
| Wire Insulation Support | With |
| Mating Retention Type | Dimple |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .81 |
| Terminates To | Wire & Cable |
| Wire Size | 1.03 – 2.62 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Minimum Wire Size Mm | 1 (mm²) |
| Maximum Wire Size Mm | 2.5 (mm²) |
| Series | FASTON .250 |
| Termination Method | Crimp |
| Minimum Wire Size Awg | 17 (AWG) |
| Gender | Female |
| Tab Size | 6.35 x 0.81 (mm) |
| Contact Plating | Tin |
| Overall Length | 21.34 (mm) |
| Insulation | Uninsulated |
| Maximum Wire Size Awg | 13 (AWG) |
| Type | Receptacle |
| Contact Material | Brass |
