280373-2
SnapVerified
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Automotive Reel
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 280373-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

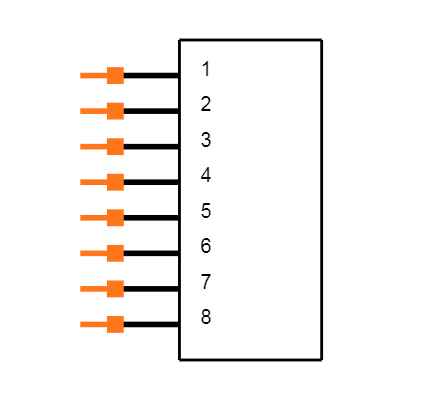

Symbol
No web preview
This Symbol is Available for

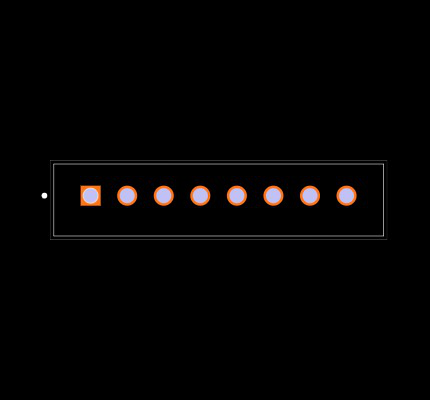

Footprint
No web preview
This Footprint is Available for

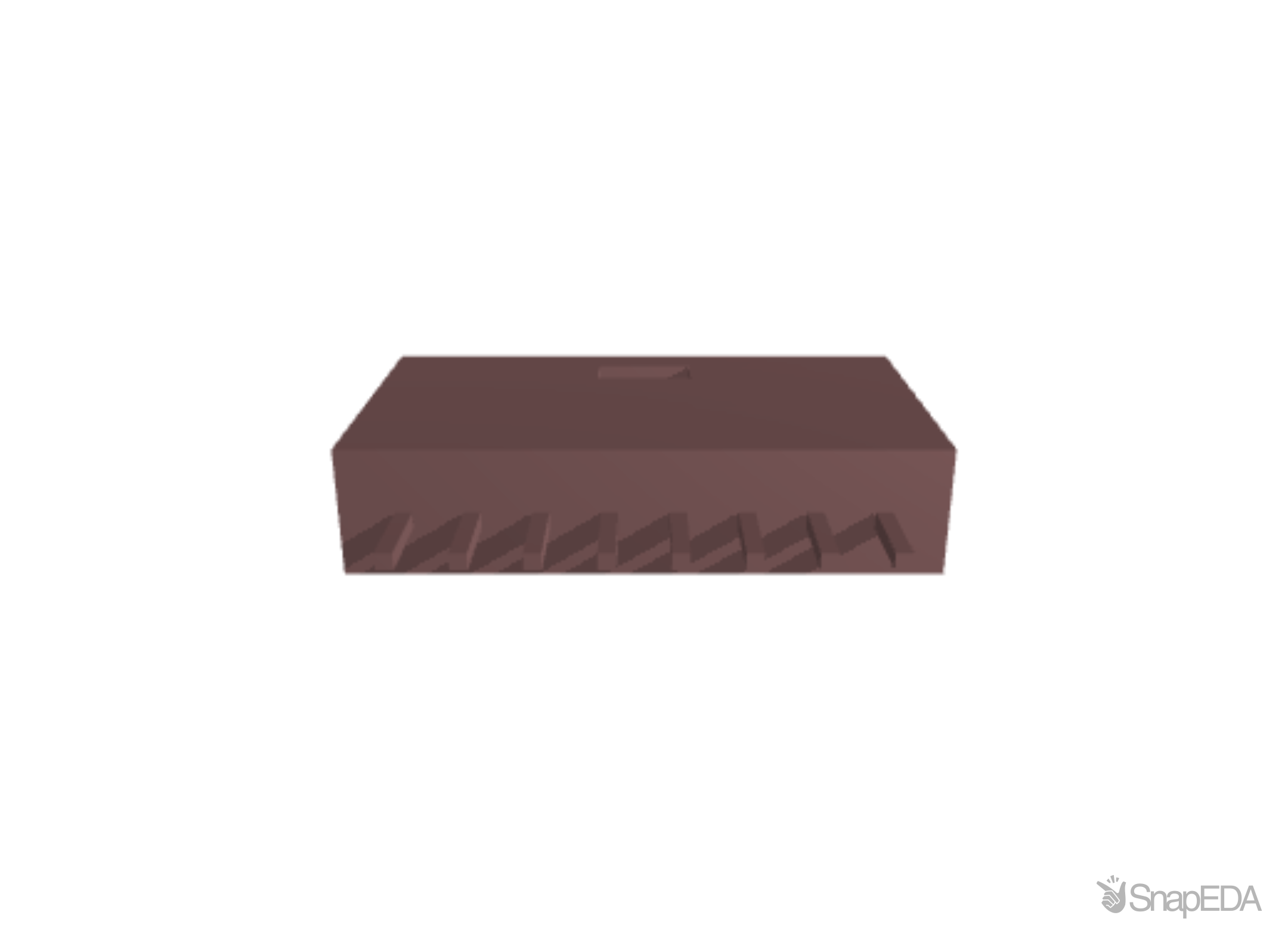

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 280373-2
| Part Name | 280373-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .1 |
| Dielectric Withstanding Voltage (V) | 750 V |
| Number of Shrouded Sides | 3-Sided |
| Mating Retention Type | Detent Windows |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | .1 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .138 |
| Mating Post Length | 6.6 |
| TE Internal Number | 280373-2 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 2.5 |
| Header Type | Shrouded |
| Strain Relief | Without |
| Contact Shape | Round |
| Housing Color | Black |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Box |
| Packaging Quantity | 500 |
| Number of Positions | 8 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | 1.65 |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Mating Retention | With |
| Contact Base Material | Brass |
| High Temperature Housing | No |
| Post Size | .025 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Standard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Plating | Gold |
| Mounting Type | Through Hole |
| Series | AMPMODU MOD II |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 8 |
| Contact Material | Brass |
