280513

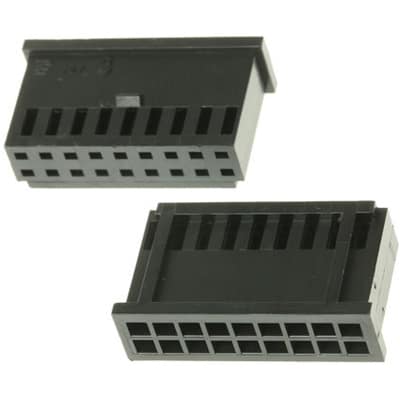

PCB Housing, 2.54mm Pitch, 18-Way 2 Row, Female Straight, AMPMODU Mod II Series | TE Connectivity 280513
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 280513 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 280513
| Part Name | 280513 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Latch |
| Centerline (Pitch) | .1 |
| Housing Entry Configuration | Both Ends Closed |
| Mating Retention Type | Lock |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Row-to-Row Spacing | .1 |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Detent Latching |
| Number of Positions | 18 |
| PCB Mount Retention | Without |
| TE Internal Number | 280513 |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| Number of Rows | 2 |
| Housing Color | Black |
| Packaging Method | Bag |
| Connector Type | Housing |
| Packaging Quantity | 1000 |
| Contact Layout | Inline |
| Length | 7.1 |
| Mating Alignment | With |
| Mating Retention | With |
| UL Flammability Rating | UL 94V-0 |
| Height | .12 |
| Panel Mount Feature | Without |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Connector Lock | With |
