280609-2
Wire-To-Board Connector, Single In Line, Through Hole, Header, 2, 3.96 Mm, Gold Plated Contacts
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the 280609-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
This symbol was not created by SnapEDA, please be cautious when using it in your design
Download Symbol and Footprint
Auto-Import
Downloaded times

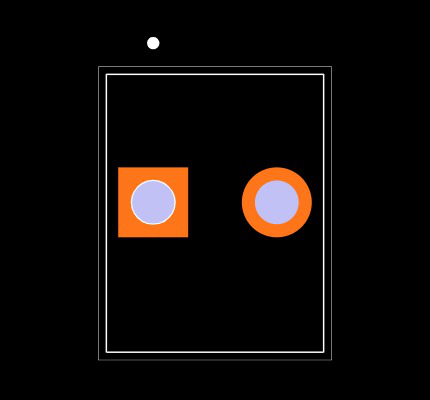

Footprint
No web preview
This Footprint is Available for
This footprint was not created by SnapEDA, please be cautious when using it in your design
Download Footprint
Downloaded times
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 24 hours!
More
Relevant part with 2D models
| Verification | Issues | Specs | Pricing |
Specifications for the 280609-2
| Part Name | 280609-2 |
| Manufacturer | TE Connectivity |
| Number of Positions | 2 |
| Packaging Method | Carton |
| Shrouded End Dimension | .045 |
| PCB Contact Termination Area Plating Material | Tin |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Contact Shape | Square |
| TE Internal Number | 280609-2 |
| Header Type | Shrouded |
| Dielectric Withstanding Voltage (V) | 750 V |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Material Thickness | 15 |
| Connector Profile | Standard |
| Centerline (Pitch) | 3.96 |
| Operating Temperature Range | -65 – 105 |
| Post Size | .01 |
| PCB Mount Orientation | Vertical |
| PCB Connector Assembly Type | PCB Mount Header |
| Termination Post & Tail Length | 3.3 |
| Connector Contact Load Condition | Fully Loaded |
| UL Flammability Rating | UL 94V-0 |
| Mating Post Length | 10 |
| Approved Standards | UL E28476 |
| Housing Material | Polycarbonate GF |
| Number of Rows | 1 |
| Contact Type | Pin |
| Strain Relief | Without |
| PCB Mount Retention | Without |
| Contact Base Material | Brass |
| Mating Alignment Type | Polarization |
| Housing Color | Green |
| Panel Mount Feature | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| Packaging Quantity | 1000 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
