280613-2
SnapVerified
PCB Header, 3.96mm, 10 Way 1 Row Straight, Solder, AMPMODU Mod I Series | TE Connectivity 280613-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 280613-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

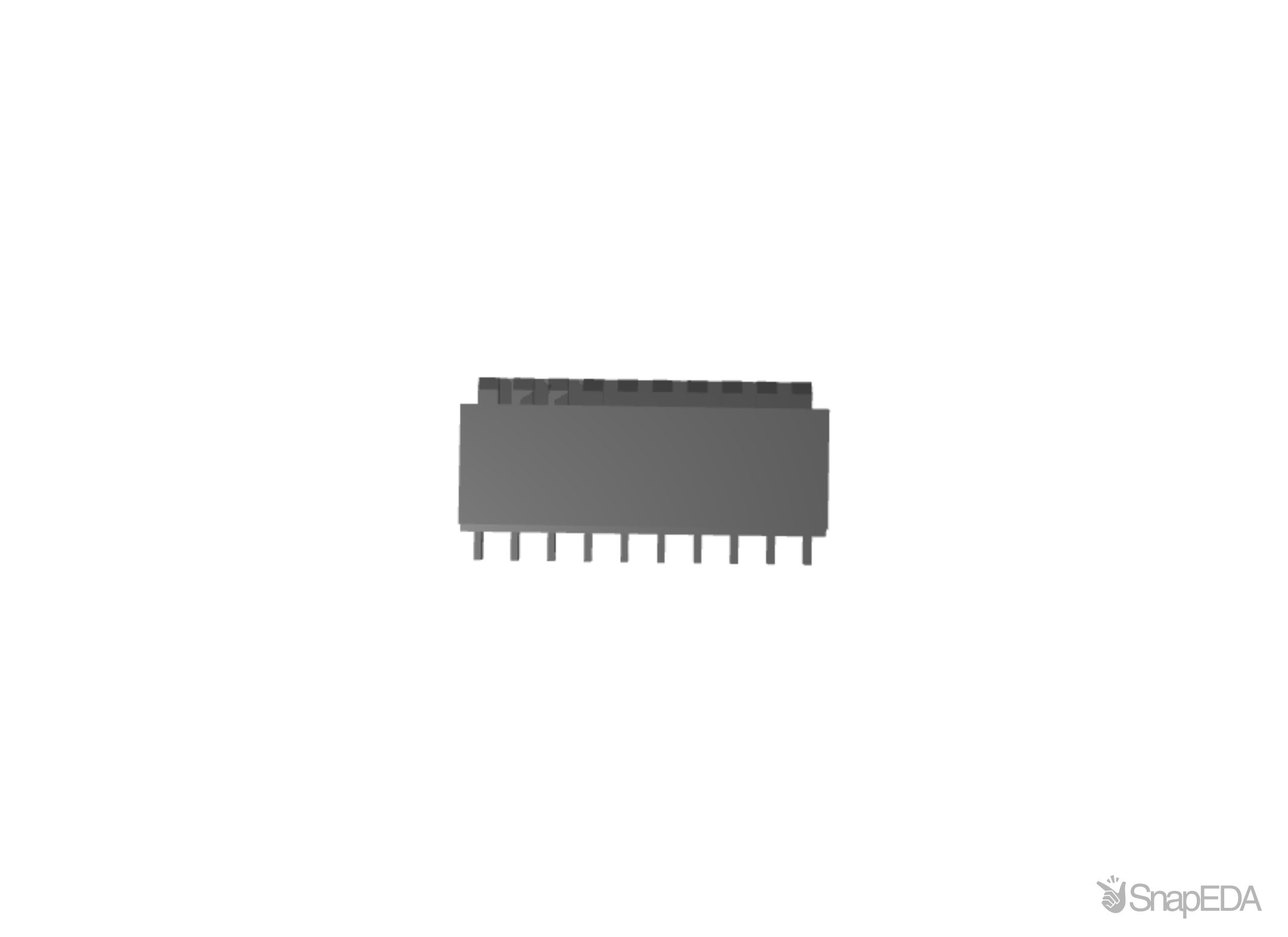

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 280613-2
| Part Name | 280613-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .156 |
| Dielectric Withstanding Voltage (V) | 750 V |
| Housing Material | Polycarbonate GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 10 |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 3.3 |
| Mating Post Length | .393 |
| TE Internal Number | 280613-2 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 1 |
| Housing Color | Green |
| Header Type | Shrouded |
| Contact Base Material | Brass |
| Contact Shape | Square |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Carton |
| Packaging Quantity | 200 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | .045 |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Post Size | .01 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Standard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 280613-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
846
|
|
Visit Site | |
| Arrow Europe |
676
|
1 x $3.03
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Boersig GmbH |
65
|
1 x $4.08
|
Visit Site | |
| Buerklin |
|
200 x $4.22
|
Visit Site | |
| Chip One Stop |
15,100
|
|
Visit Site | |
| Farnell UK |
13,591
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
858
|
|
Visit Site | |
| Onlinecomponents |
13,887
|
|
Visit Site | |
| Powell Electronics |
9,966
|
|
Visit Site | |
| Sager |
|
1,000 x $4.39
|
Visit Site | |
| Verical |
676
|
2 x $3.00
|
Visit Site | |
| element14 Singapore |
858
|
|
Visit Site |
No issues have been reported for the 280613-2
If you experienced any issues with the symbol or footprint, please report it.
