280702-1
PCB Contact Receptacle, Female, Tin/Nickel, 22-18 AWG, AMPMODU Mod I Series | TE Connectivity 280702-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 280702-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

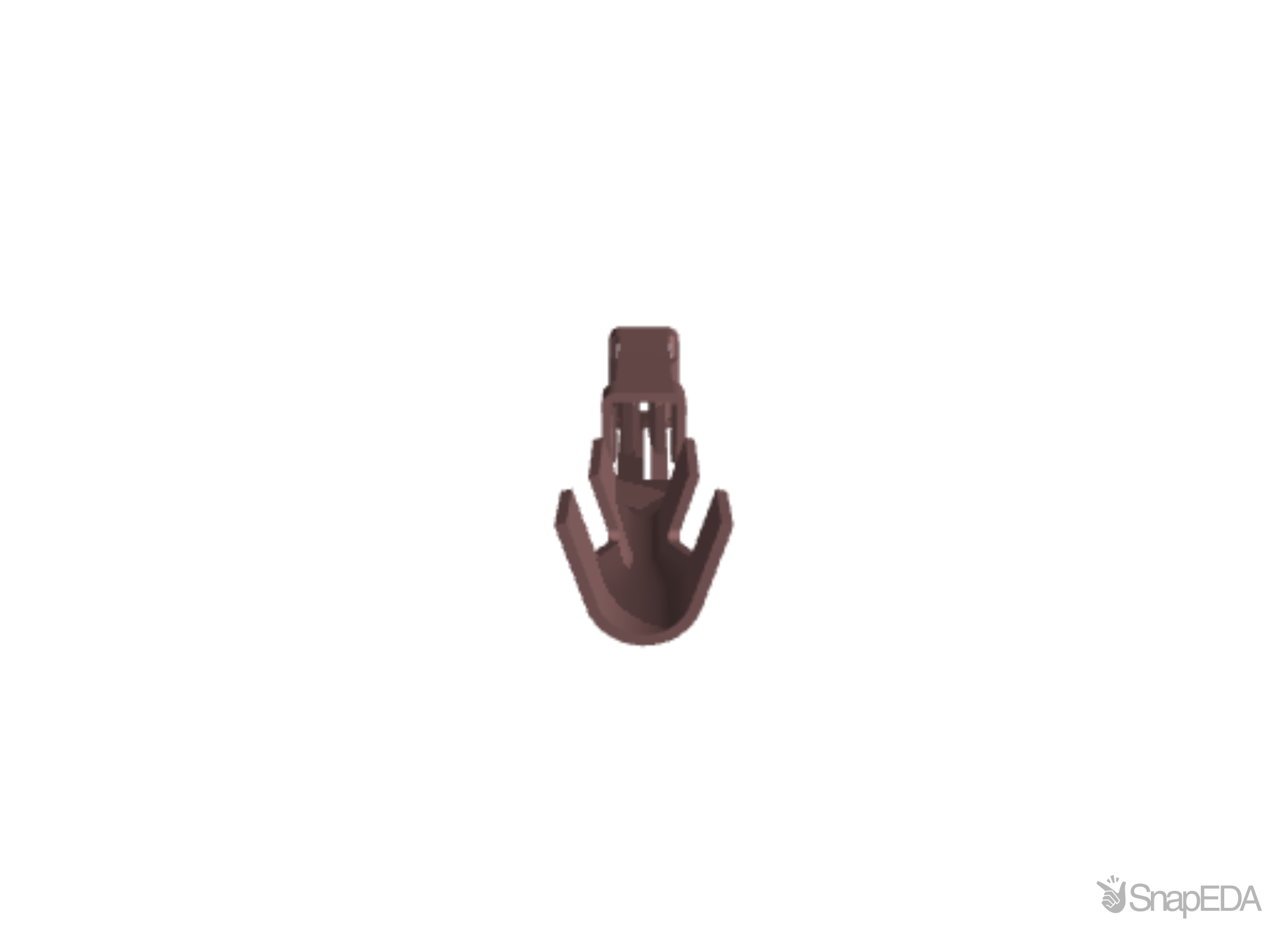

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 280702-1
| Part Name | 280702-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| PCB Mount Retention | Without |
| Contact Base Material | Phosphor Bronze |
| Contact Orientation | Straight |
| Operating Temperature Range | -40 to 105 |
| Insulation Diameter | .071 .091 |
| Wire Insulation Support | With |
| Packaging Method | Reel |
| TE Internal Number | 280702-1 |
| Packaging Quantity | 5000 |
| Contact Mating Area Plating Material Thickness | 31.496 |
| Contact Current Rating (Max) (A) | 5 |
| Applied Pressure | High |
| PCB Contact Termination Area Plating Material Thickness | 31.496 |
| Contact Mating Area Plating Material | Tin |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | .3 .9 |
| Connector & Contact Terminates To | Wire & Cable |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.3 (mm²) |
| Maximum Wire Size Mm | 0.9 (mm²) |
| Maximum Contact Resistance | 12 (mΩ) |
| Series | AMPMODU MOD I |
| Termination Method | Crimp |
| Minimum Wire Size Awg | 22 (AWG) |
| Contact Plating | Tin |
| Gender | Female |
| For Use With | AMPMODU MOD I Connector Housing |
| Maximum Wire Size Awg | 18 (AWG) |
| Contact Material | Phosphor Bronze |
