281695-3
SnapVerified
Shrouded Header, 3 Way 1 Row, Straight, AMPMODU HE14 Series | TE Connectivity 281695-3
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 281695-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

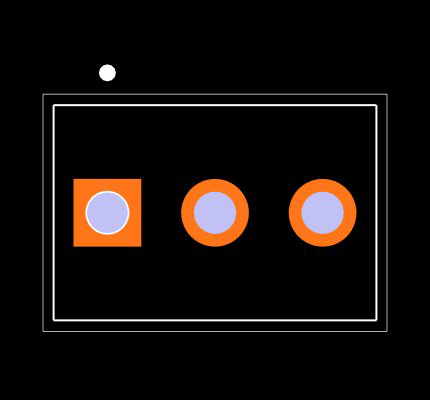

Footprint
No web preview
This Footprint is Available for

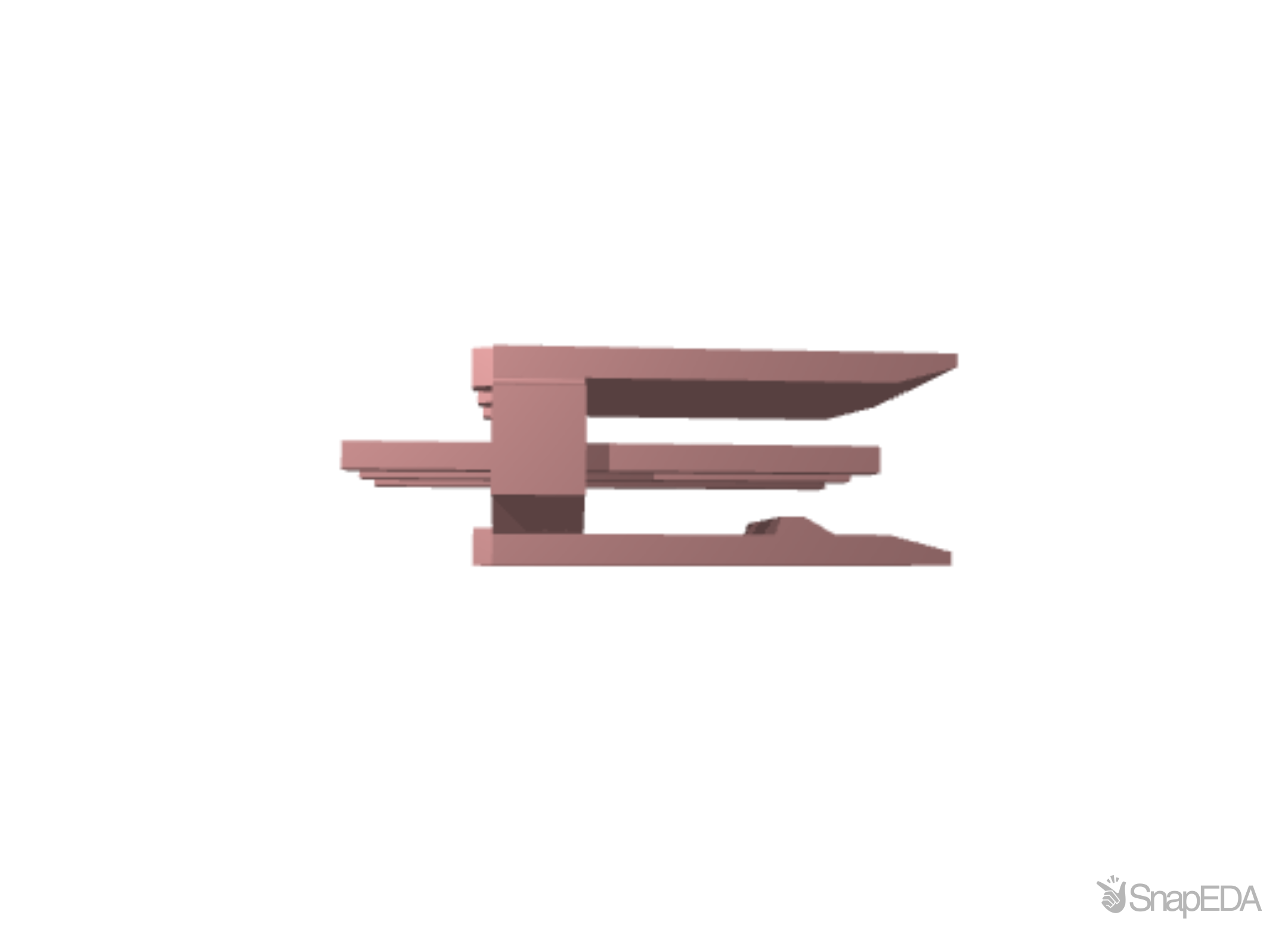

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 281695-3
| Part Name | 281695-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Number of Shrouded Sides | 2-Sided |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 2.9 |
| Contact Current Rating (Max) (A) | 3 |
| Panel Mount Feature | Without |
| Mating Post Length | 6.75 |
| TE Internal Number | 281695-3 |
| PCB Mount Orientation | Vertical |
| Termination Method to Wire & Cable | Crimp |
| Number of Rows | 1 |
| Housing Color | Blue |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Box |
| Packaging Quantity | 2000 |
| Contact Base Material | Phosphor Bronze |
| Number of Positions | 3 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin |
| Shrouded End Dimension | 1.27 |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Housing Material | High Temperature Thermoplastic |
| 端子の下地めっきの材料 | Nickel |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Series | AMPMODU HE14 |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 3 |
| Contact Material | Phosphor Bronze |
Inventory for the 281695-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,992
|
|
Visit Site | |
|
★ Featured
|
4,673
|
|
Visit Site | |
|
★ Featured
|
3,600
|
415 x $0.73
|
Visit Site | |
| Arrow Electronics |
2,000
|
|
Visit Site | |
| Avnet America |
2,525
|
1 x $0.31
|
Visit Site | |
| Buerklin |
201
|
|
Visit Site | |
| Chip One Stop |
14,000
|
|
Visit Site | |
| Compona AG |
|
|
Visit Site | |
| Conrad |
109
|
|
Visit Site | |
| Farnell UK |
16,517
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
11
|
|
Visit Site | |
| Onlinecomponents |
3,082
|
|
Visit Site | |
| Powell Electronics |
9,426
|
|
Visit Site | |
| RS UK |
310
|
2,000 x $0.72
|
Visit Site | |
| Sager |
|
4,000 x $0.49
|
Visit Site | |
| TME |
2,526
|
|
Visit Site | |
| TTI Europe |
|
500 x $0.49
|
Visit Site | |
| Verical |
4,070
|
538 x $0.32
|
Visit Site | |
| element14 Singapore |
14,346
|
|
Visit Site |
No issues have been reported for the 281695-3
If you experienced any issues with the symbol or footprint, please report it.
