281695-4
SnapVerified
Shrouded Header, 4 Way 1 Row, Straight, AMPMODU HE14 Series | TE Connectivity 281695-4
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 281695-4 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

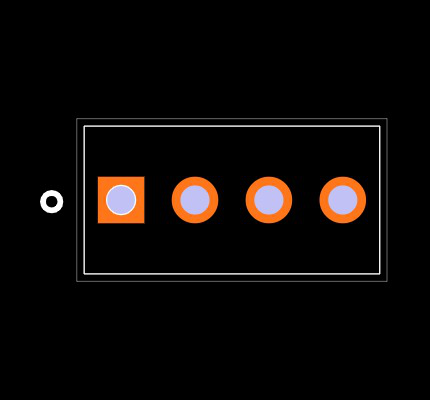

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 281695-4
| Part Name | 281695-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Number of Shrouded Sides | 2-Sided |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Row-to-Row Spacing | 2.54 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Housing Material | High Temperature Thermoplastic |
| Termination Post & Tail Length | 2.9 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | 6.75 |
| TE Internal Number | 281695-4 |
| PCB Mount Orientation | Vertical |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Number of Rows | 1 |
| Housing Color | Blue |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Bag |
| Packaging Quantity | 2000 |
| Contact Base Material | Phosphor Bronze |
| Number of Positions | 4 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin |
| Shrouded End Dimension | 1.27 |
| Approved Standards | UL E28476 |
| 端子の下地めっきの材料 | Nickel |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 3 |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 281695-4 by TE Connectivity AMP Connectors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,654
|
|
Visit Site |
No issues have been reported for the 281695-4
If you experienced any issues with the symbol or footprint, please report it.
