2822362-3
Housing for female terminals 070 EJ MK-2 SENSOR PLUG 2P GRAY 2 POS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2822362-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

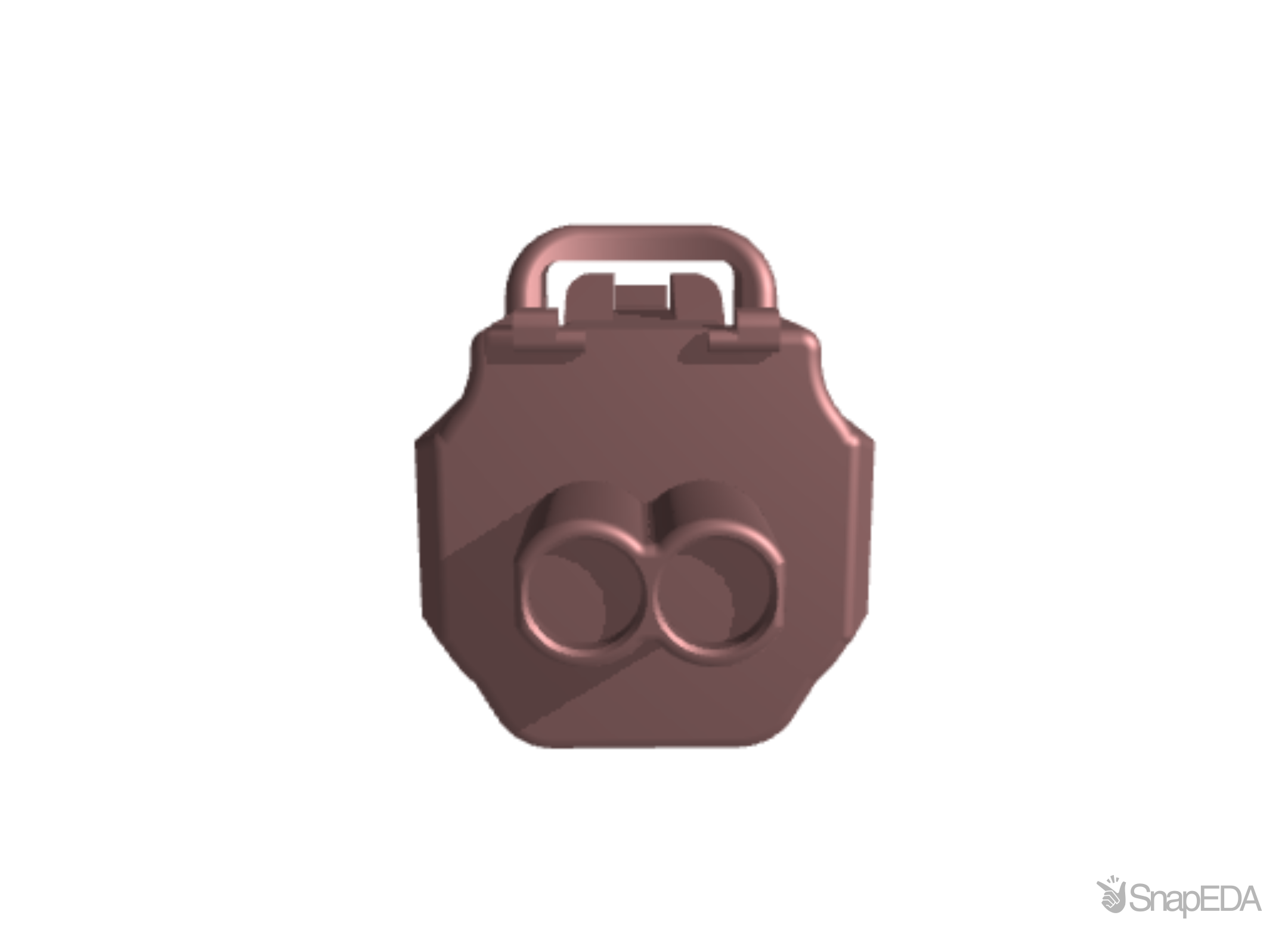

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2822362-3
| Part Name | 2822362-3 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | .945 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 2 |
| Operating Temperature Range | -22 – 221 |
| TE Internal Number | 2822362-3 |
| Connector System | Wire-to-Wire |
| Number of Rows | 1 |
| Strain Relief | No |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Length | .866 |
| Hybrid Connector | No |
| Packaging Method | Bag |
| Packaging Quantity | 100 |
| Body Material | PBT |
| Cable Exit Angle | 180° |
| RoHS | True |
| Mating Tab Width | .071 |
| Sealable | Yes |
| Color | Gray |
| UL Flammability Rating | UL 94V-2 |
| Height | 27.6 |
| Primary Locking Feature | Integrated in Housing |
| Connector Code | D |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
