282815-2
SnapVerified
2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle - Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 282815-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

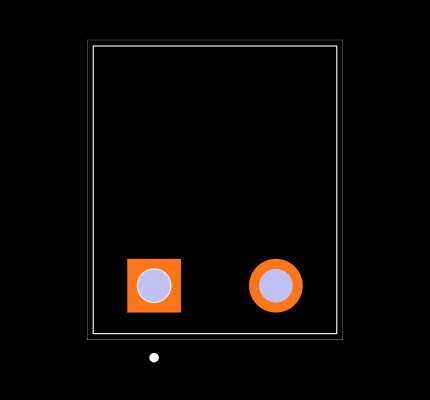

Footprint
No web preview
This Footprint is Available for

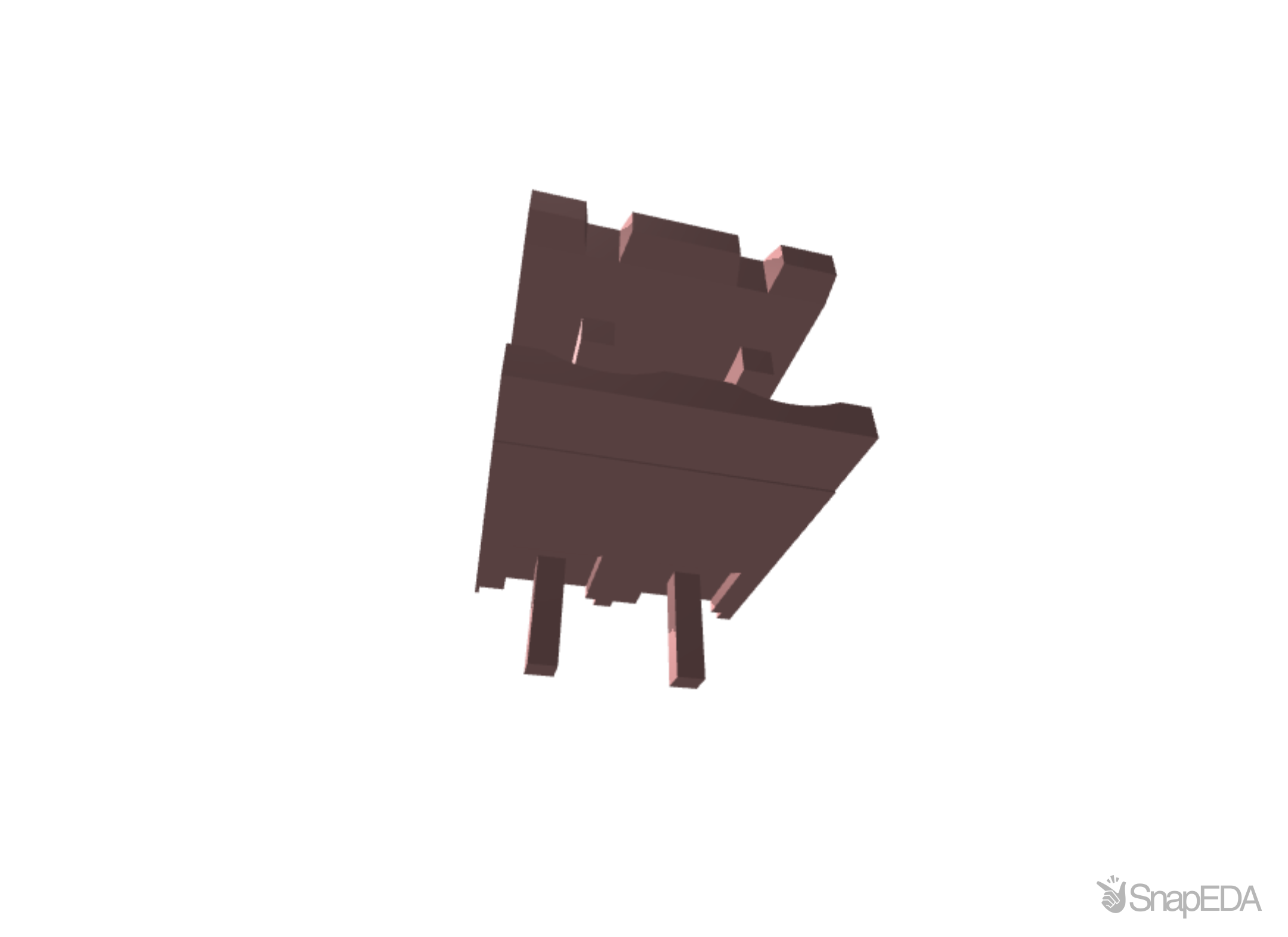

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 282815-2
| Part Name | 282815-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .2 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Flange | Without |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Connector & Contact Terminates To | Printed Circuit Board |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 15 |
| TE Internal Number | 282815-2 |
| PCB Tail Length | .138 |
| Number of Positions | 2 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Header Type | Partially Shrouded |
| Contact Base Material | CuMg |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 105 |
| Packaging Quantity | 300 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Right Angle |
| Threaded Flange | Without |
| Interlock | Without |
| Contact Current Rating (Max) (A) | 15 |
| Block Type | PCB Mount |
| Voltage (V) | 300 |
| Wire Size | .05 3 |
| Closed End | Without |
| Mating Angle | 90 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 5.08 (mm) |
| Current Rating (A) | 15.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 300.0 V |
| Series | Buchanan |
| Body Orientation | Right Angle |
| Pluggable Terminal Block Type | Header |
| Number Of Rows | 1 |
| Termination Method | Solder |
| Number Of Contacts | 2 |
| Contact Material | Phosphor Bronze |
