282834-5
SnapVerified
Buchanan,Terminal Block Connector,PCB,5,2.54mm,Front,30-16 AWG,Green,10 A,150 V | TE Connectivity 282834-5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 282834-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

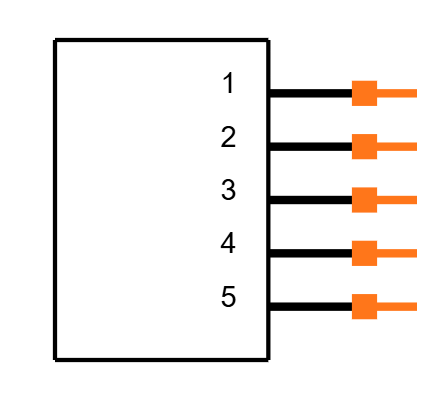

Symbol
No web preview
This Symbol is Available for

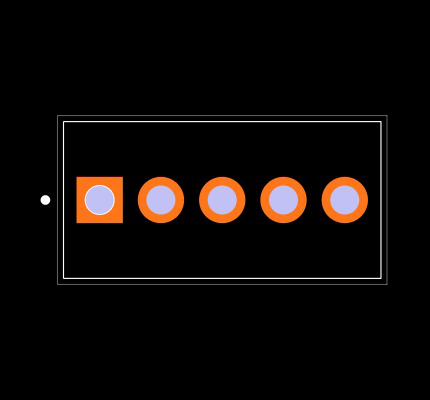

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 282834-5
| Part Name | 282834-5 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .1 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M1.6 |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Connector & Contact Terminates To | Printed Circuit Board |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 10 |
| Contact Current Rating (Max) (A) | 10 |
| TE Internal Number | 282834-5 |
| PCB Tail Length | 3.4 |
| Number of Positions | 5 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Header Type | Header Only |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 110 |
| Packaging Method | Carton |
| Packaging Quantity | 150 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| Wire Entry Angle | Side |
| RoHS | True |
| Mounting Angle | Straight |
| Interlock | Without |
| Screw Material | Brass |
| Block Type | Stacking |
| Voltage (V) | 150 |
| Wire Size | 30 16 |
| Closed End | Without |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 282834-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,925
|
|
Visit Site | |
|
★ Featured
|
617
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
1,132
|
|
Visit Site | |
| Conrad |
15
|
1 x $4.67
|
Visit Site | |
| Farnell UK |
3,427
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
1,712
|
|
Visit Site | |
| Onlinecomponents |
3,699
|
|
Visit Site | |
| Powell Electronics |
2,449
|
|
Visit Site | |
| RS UK |
537
|
|
Visit Site | |
| Sager |
|
1,200 x $2.63
|
Visit Site | |
| TE Store |
6,093
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
4,602
|
|
Visit Site | |
| Verical |
95
|
35 x $3.78
|
Visit Site | |
| element14 Singapore |
1,712
|
|
Visit Site |
