2834167-3
SnapVerified
Releasable Slim Contact;Poke-In Connector;SMT;Wire-to-Board;18-22 AWG | TE Connectivity 2834167-3
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2834167-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

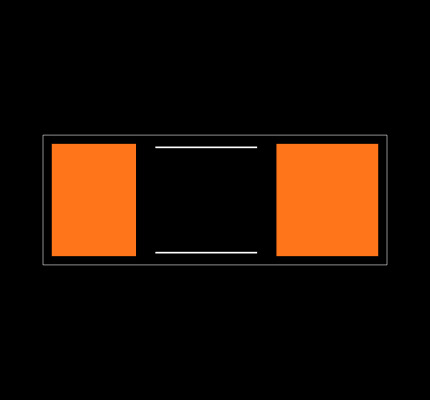

Footprint
No web preview
This Footprint is Available for

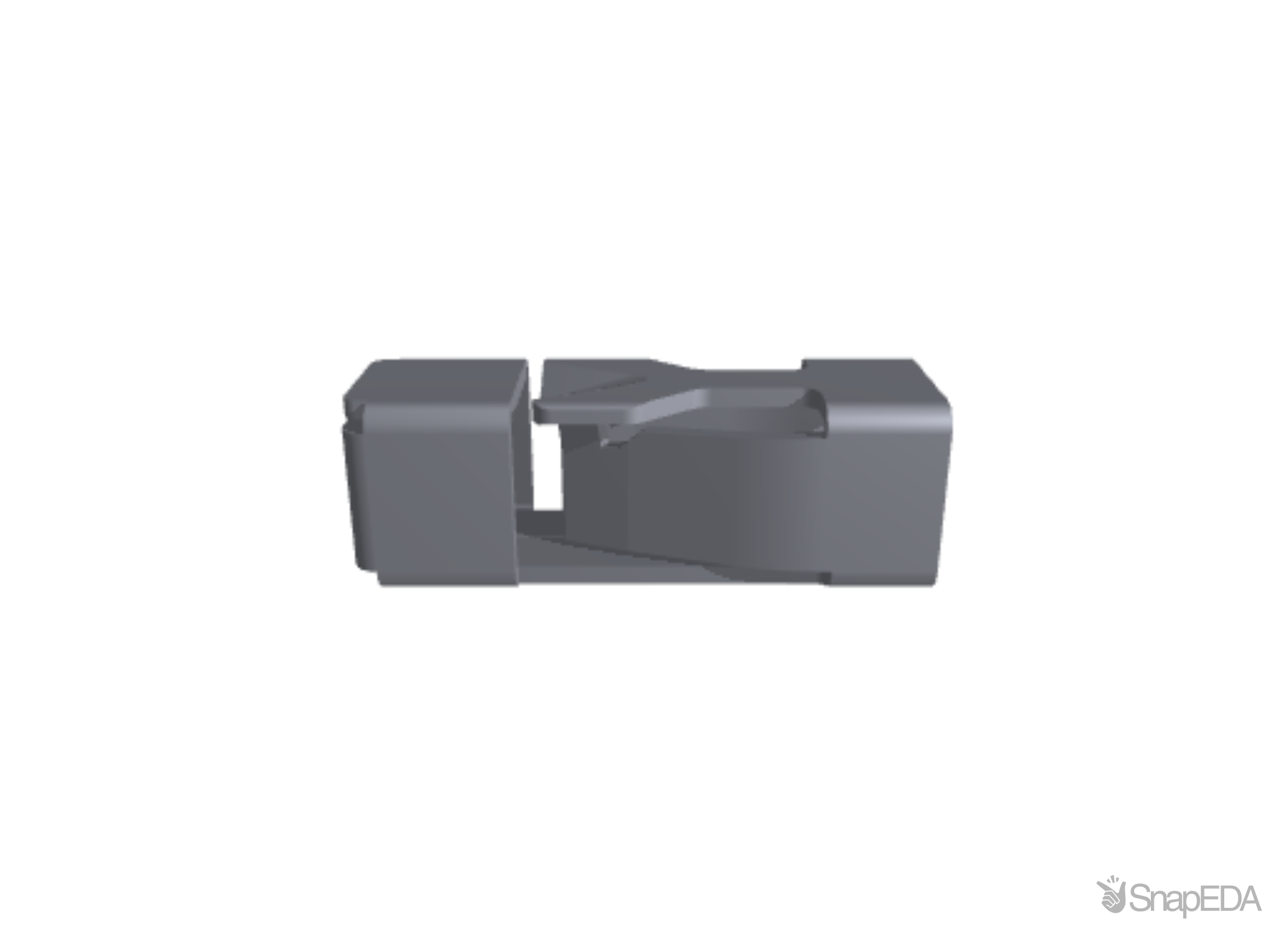

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2834167-3
| Part Name | 2834167-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Termination Area Plating Finish | Matte |
| Termination Method to Printed Circuit Board | Surface Mount |
| Operating Voltage (V) | 300 |
| Connector Style | Receptacle |
| SMT Compatible | Yes |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 2834167-3 |
| Connector System | Wire-to-Board |
| Agency/Standard Number | UL 1977 |
| Housing Color | Natural |
| Product Type | Connector |
| Packaging Method | Tape & Reel |
| Connector Type | Connector Assembly |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Tin-Lead over Nickel |
| Accepts Wire Insulation Diameter Range | 2.1 |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| RoHS | True |
| Sealable | No |
| Tool-less Wire Termination | Yes |
| UL Flammability Rating | UL 94V-0 |
| Height | 3 |
| Contact Current Rating (Max) (A) | 9 |
| Product Line | Poke-In |
| Wire Size | 18 – 22 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
