284101-1
4P CONNECTOR FOR IGNITION KEY
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 284101-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

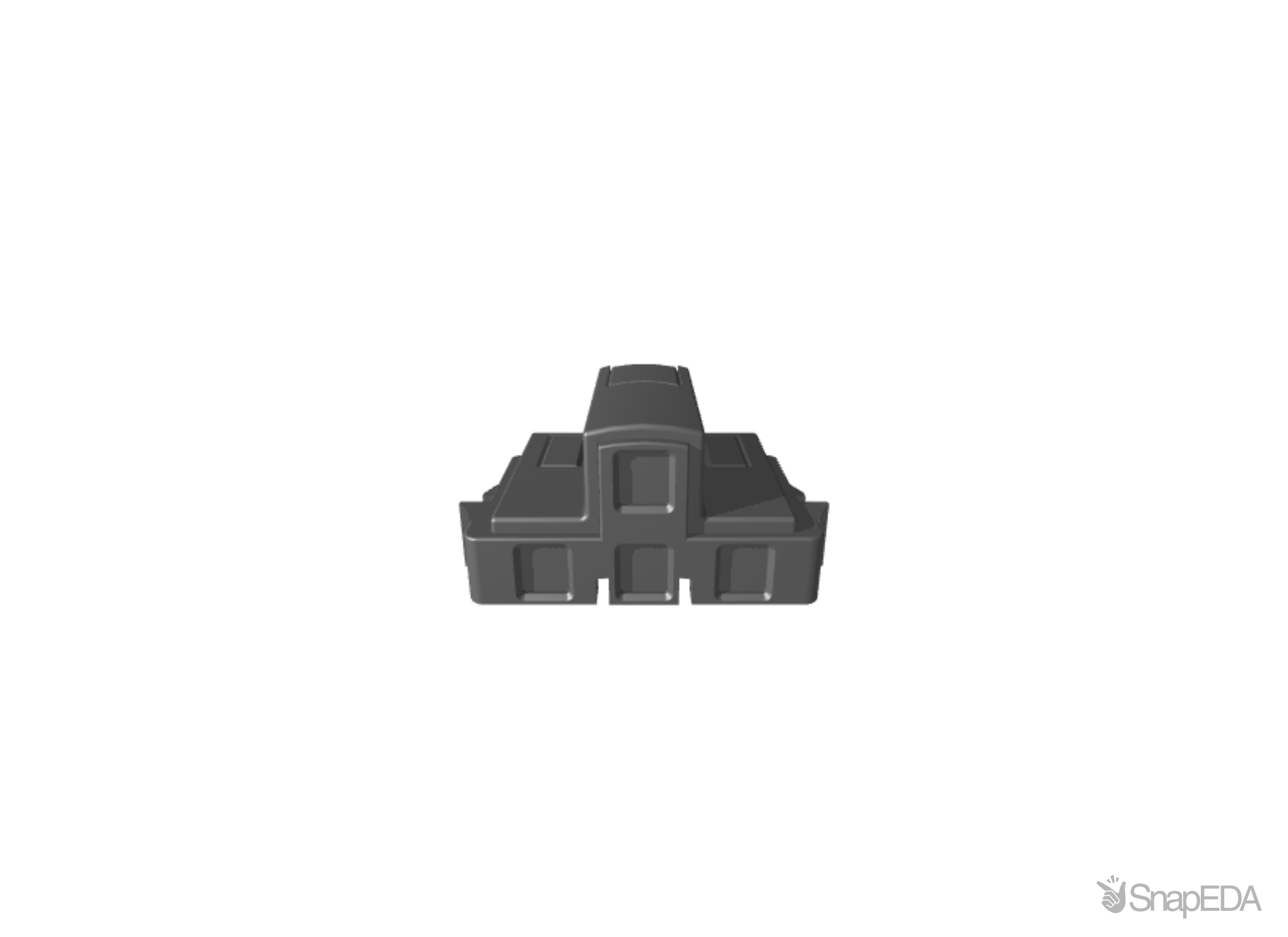

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 284101-1
| Part Name | 284101-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .362 |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Width | 17.4 |
| Operating Voltage (V) | 24 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 4 |
| Hybrid Connector | No |
| TE Internal Number | 284101-1 |
| Connector System | Wire-to-Device |
| Number of Rows | 2 |
| Sealable | No |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Operating Temperature Range | -30 – 105 |
| Packaging Method | Box |
| Serviceable | Yes |
| Length | 37 |
| Cable Exit Angle | 180° |
| RoHS | True |
| Mating Tab Width | 2.8 |
| Strain Relief | No |
| Color | Natural |
| Body Material | PA |
| Height | 26.1 |
| Row-to-Row Spacing | 5.5 |
| Primary Locking Feature | Integrated in Housing |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
