284392-6
SnapVerified
6 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 284392-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

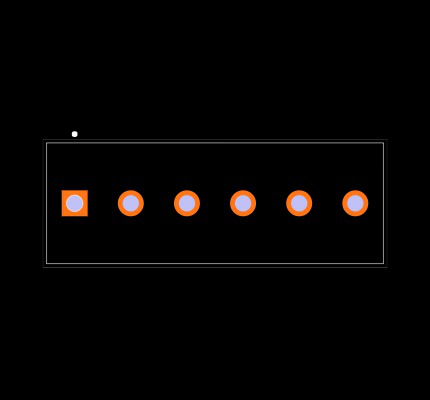

Footprint
No web preview
This Footprint is Available for

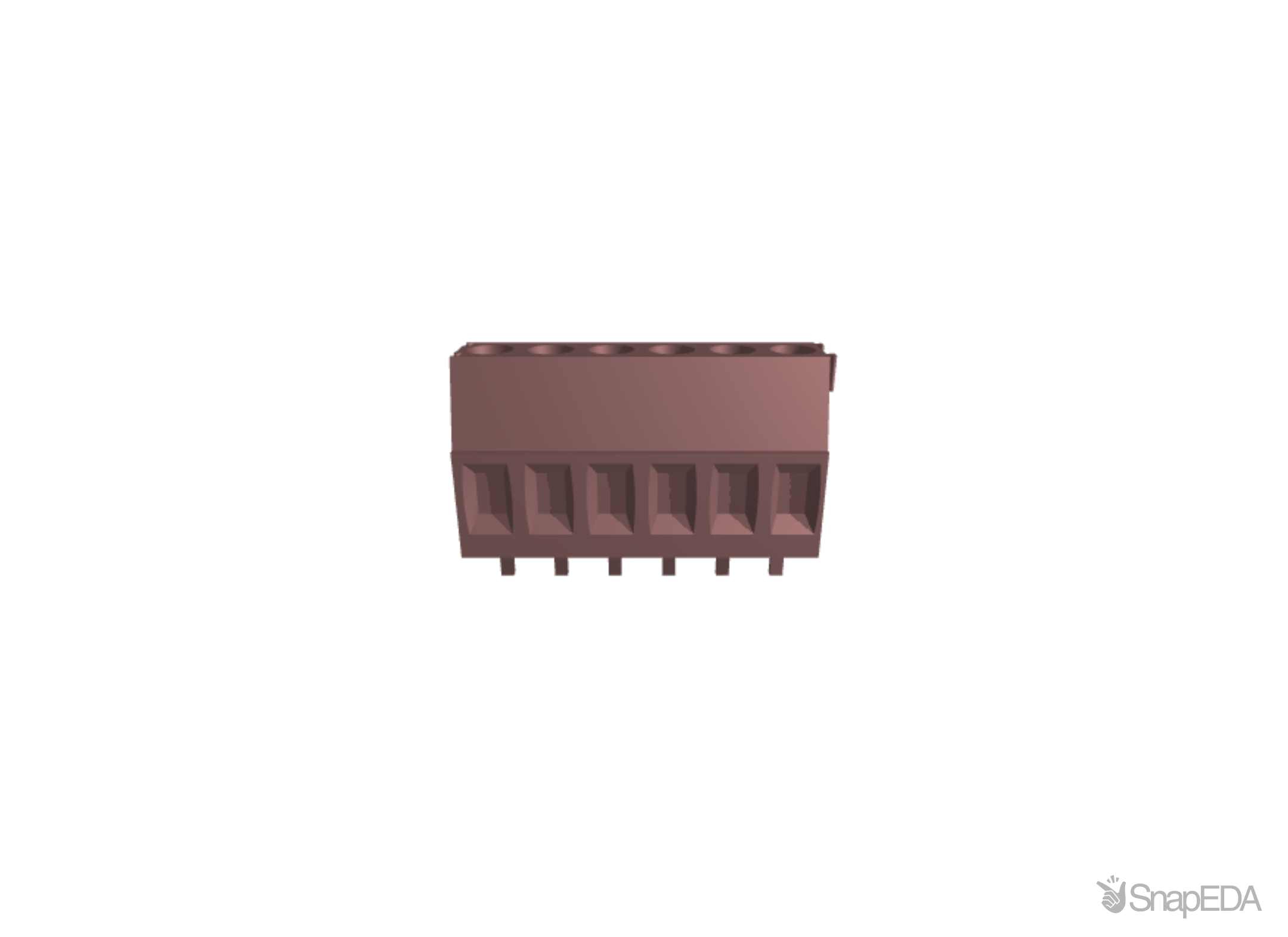

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 284392-6
| Part Name | 284392-6 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1499 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M3 |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Number of Positions | 6 |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 12 |
| Contact Current Rating (Max) (A) | 12 |
| TE Internal Number | 284392-6 |
| PCB Tail Length | 3.5 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 230 |
| Packaging Method | Box |
| Packaging Quantity | 100 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| Wire Entry Angle | Side |
| RoHS | True |
| Mounting Angle | Straight |
| Interlock | With |
| Screw Material | Brass |
| Block Type | Stacking w/interlock |
| Voltage (V) | 300 |
| Wire Size | 30 14 |
| Closed End | Without |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
