284541-3
3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle - Through Hole
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 284541-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

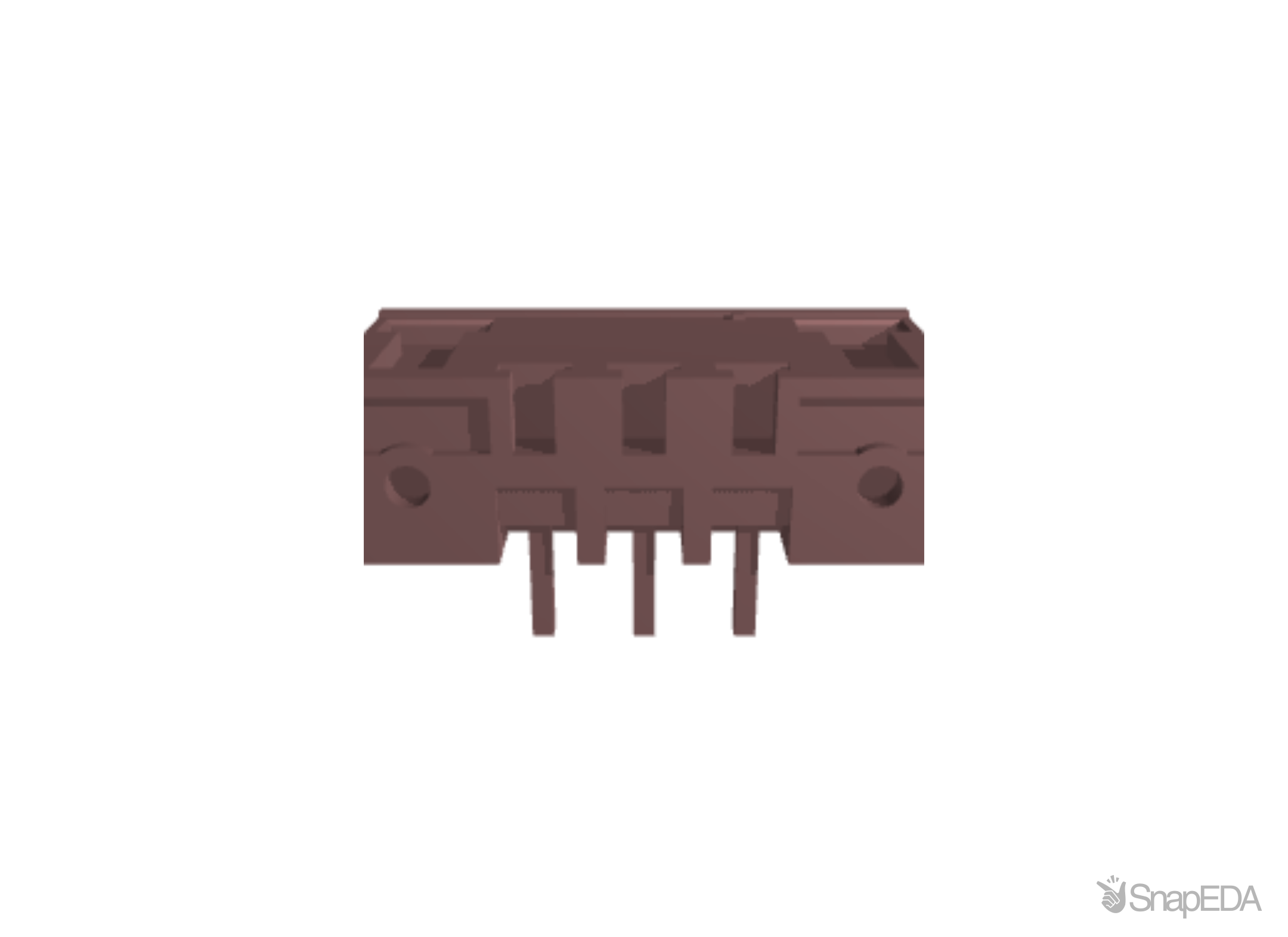

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 284541-3
| Part Name | 284541-3 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 3.81 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Flange | Without |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Number of Positions | 3 |
| Current Rating (Max) (A) | 11 |
| TE Internal Number | 284541-3 |
| PCB Tail Length | .134 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Header Type | Shrouded |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 221 |
| Packaging Quantity | 200 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Right Angle |
| Threaded Flange | With |
| Interlock | Without |
| Contact Current Rating (Max) (A) | 11 |
| Block Type | PCB Mount |
| Voltage (V) | 300 |
| Wire Size | .05 2 |
| Closed End | With |
| Mating Angle | 90 |
