2856278

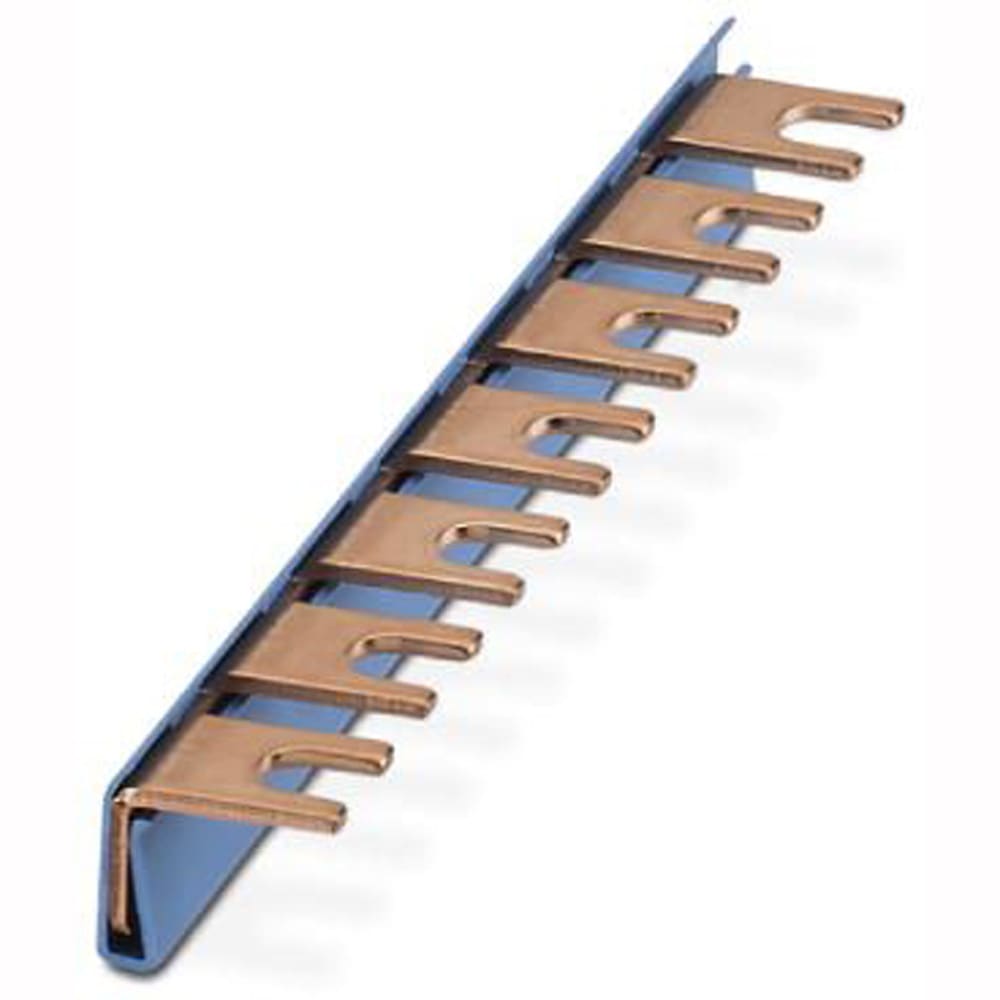

Bridge;WIRING BRIDGE;Wire Bridge;Blue | Phoenix Contact 2856278
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2856278 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2856278
| Part Name | 2856278 |
| Manufacturer | Phoenix Contact |
| Category | Circuit Breakers, Fuses & Protection |
| Product Article Number Of Manufacturer | 2856278 |
| Cross Section | 16 |
| Suitable For Number Of Units | 7 |
| Pole Number | 7 |
| Suitable For Devices With Auxiliary Switch | False |
| Insulation Present | False |
| Product Description | Wiring bridge |
| GTIN | 4017918727437 |
| Manufacturer Product Designation | Wiring bridge |
| Number Of Phases | 1 |
| Rated Permanent Current (A) | 100 |
| Suitable For Devices With N-conductor | False |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
