2902991
DIN Rail Mount Power Supply,24V,1.25A,Input 85-264V,30W,UNO POWER Series | Phoenix Contact 2902991
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2902991 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

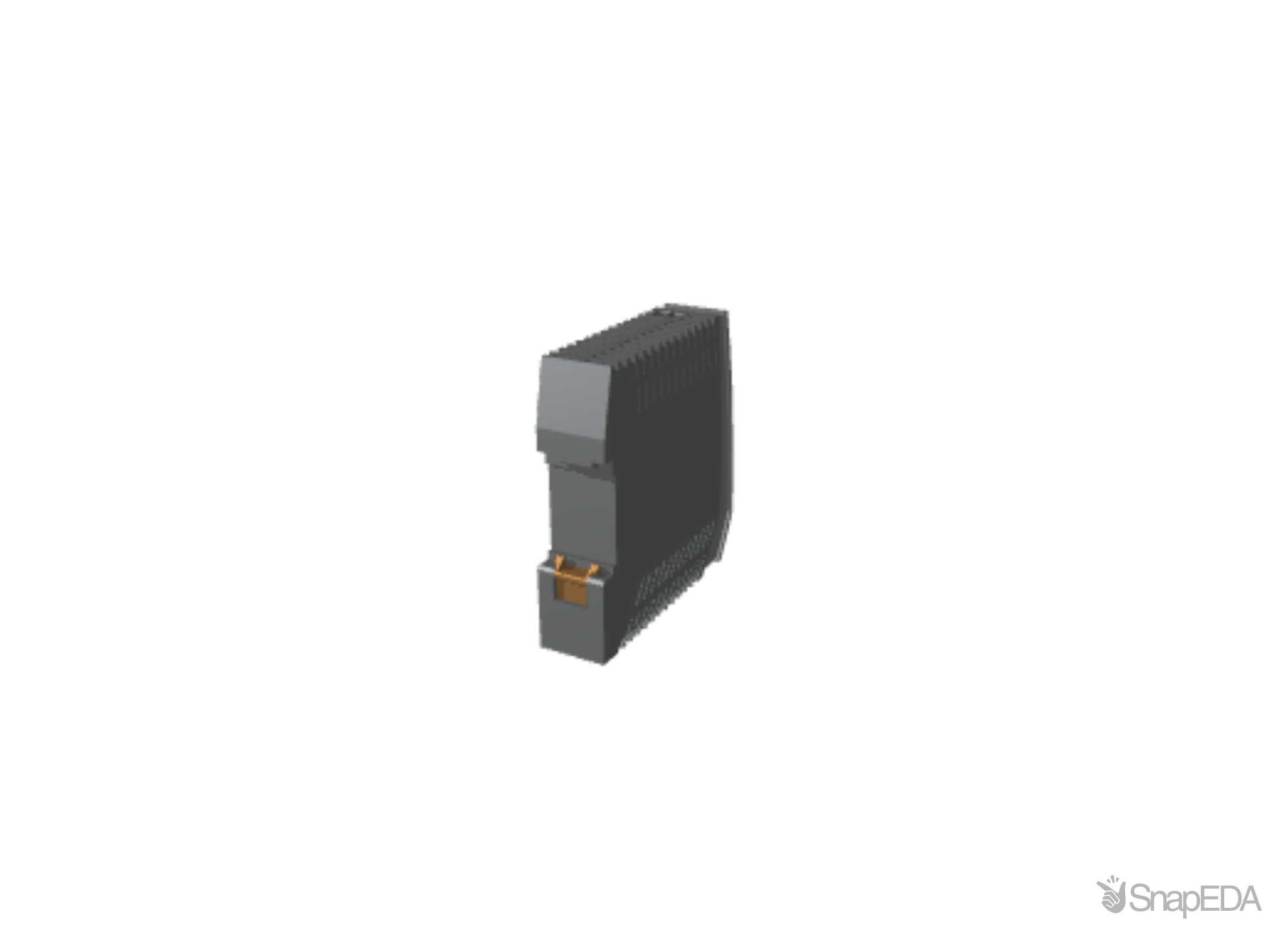

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2902991
| Part Name | 2902991 |
| Manufacturer | Phoenix Contact |
| Category | Power Products |
| Power Loss, Static, Current-independent [pls] (A) | 0.3 |
| Suitable For Safety Functions | True |
| Product Article Number Of Manufacturer | 2902991 |
| Width | 22.5 |
| Product Description | Power supply |
| Supply Voltage Type (V) | AC |
| Bearing Track Assembly Possible | True |
| Mounting Design | Assembly |
| Net Weight | 0.147 |
| Degree Of Protection | IP20 |
| Depth | 89.87 |
| Type Of Enveloping Body | enveloping body cuboid |
| GTIN | 4046356729192 |
| Manufacturer Product Designation | Power supply |
| Height | 90 |
| Number Of The Executions Of The Housing Parts | 0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Temperature | +70 (°C) |
| Dimensions | 22.5 x 90 x 84 (mm) |
| Minimum Temperature | -25 (°C) |
| Width | 90 (mm) |
| Electrical Phase | 1 |
| Type | Switched Mode |
| Number Of Outputs | 1 |
| Ac Or Dc Output Voltage (V) | dc |
| Standards Met | cULus Recognised |
| Ac Or Dc Input Voltage (V) | ac |
| Efficiency | 88 (%) |
| Mtbf | 500000 (h) |
| Input Voltage (V) | 85 → 264 (V ac) |
| Ripple And Noise | 60 (mV Pk-Pk) |
| Depth | 84 (mm) |
| Model | UNO-PS/1AC/24DC/ 30W |
| Mounting Type | DIN Rail Mount |
| Output Current (A) | 1.25 (A) |
| Series | UNO POWER |
| Height | 90 (mm) |
| Output Voltage (V) | 24 (V dc) |
| Power Rating | 30 (W) |
