2907169

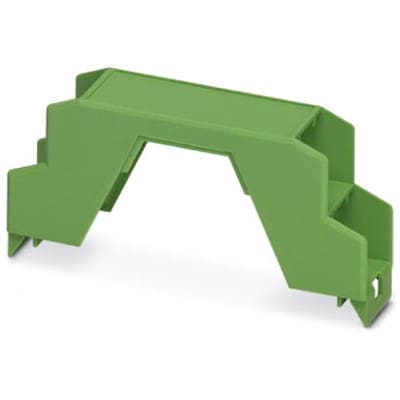

Enclosures,ME 22 5 OT-MSTBO GN ME Series | Phoenix Contact 2907169
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2907169 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2907169
| Part Name | 2907169 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Suitable For Series Installation | False |
| Max. Operating Temperature | 105 |
| Width | 22.6 |
| GTIN | 4017918126650 |
| Degree Of Protection (ip), Mounted | IP20 |
| Max. Number Of Printed Circuit Boards | 1 |
| Min. Operating Temperature | -40 |
| Product Description | Upper housing part |
| Material | Polyamide (PA) |
| Gtin (ean) Code | 4017918126650 |
| RoHS | True |
| Internal Article Number | 2907169 |
| Number Of The Executions Of The Housing Parts | 0 |
| Color Of Housing | green |
| Depth | 45.85 |
| Manufacturer Product Designation | Upper housing part |
| Width In Units Of Measurement | 0 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 2907169 |
| Net Weight | 0.01093 |
| Height | 99 |
| Color Number According To Ral | 6021 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Din Rail Type | Solid Top Enclosure |
| Dimensions | 22.6 x 99 x 45.85 (mm) |
| Series | ME |
| Length | 22.6 (mm) |
| Body Material | Polyamide |
| Enclosure Type | Upper Housing Part For Connectors with Header |
Inventory for the 2907169 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
1 x $1.76
|
Visit Site | |
| Conrad |
252
|
1 x $13.54
|
Visit Site | |
| Farnell UK |
|
10 x $1.97
|
Visit Site | |
| RS Americas |
30
|
|
Visit Site | |
| Sager |
177
|
|
Visit Site | |
| TTI Europe |
50
|
|
Visit Site |
No issues have been reported for the 2907169
