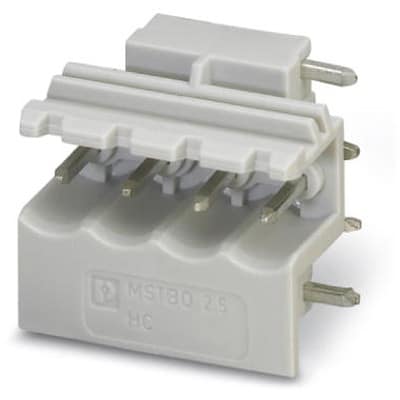

PCB Headers, 4 Position, Pitch 5mm, light Gray, Article with lateral pin exit | Phoenix Contact 2907787
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2907787 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2907787
| Part Name | 2907787 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Tin |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 2907787 |
| Material Of Insulation | PA |
| Internal Article Number | 2907787 |
| Product Description | PCB header |
| Category | Connectors |
| Height | 16.5 |
| Width | 19.95 |
| Depth | 14.65 |
| Gtin (ean) Code | 4017918367015 |
| GTIN | 4017918367015 |
| Rated Current (A) | 12 |
| Manufacturer Product Designation | PCB header |
| Design Of Electrical Connection | Wave soldering |
| Material Of The Contact | Copper |
| Application Standards | IECÂ 61984 |
| RoHS | True |
| Coating Plug Contact Area | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pluggable Terminal Block Type | Header |
| Series | 5/ 4-G1R KMGY, MSTBO 2 |
| Body Orientation | Right Angle |
| Number Of Rows | 1 |
| Pitch | 5 (mm) |
| Number Of Contacts | 4 |
