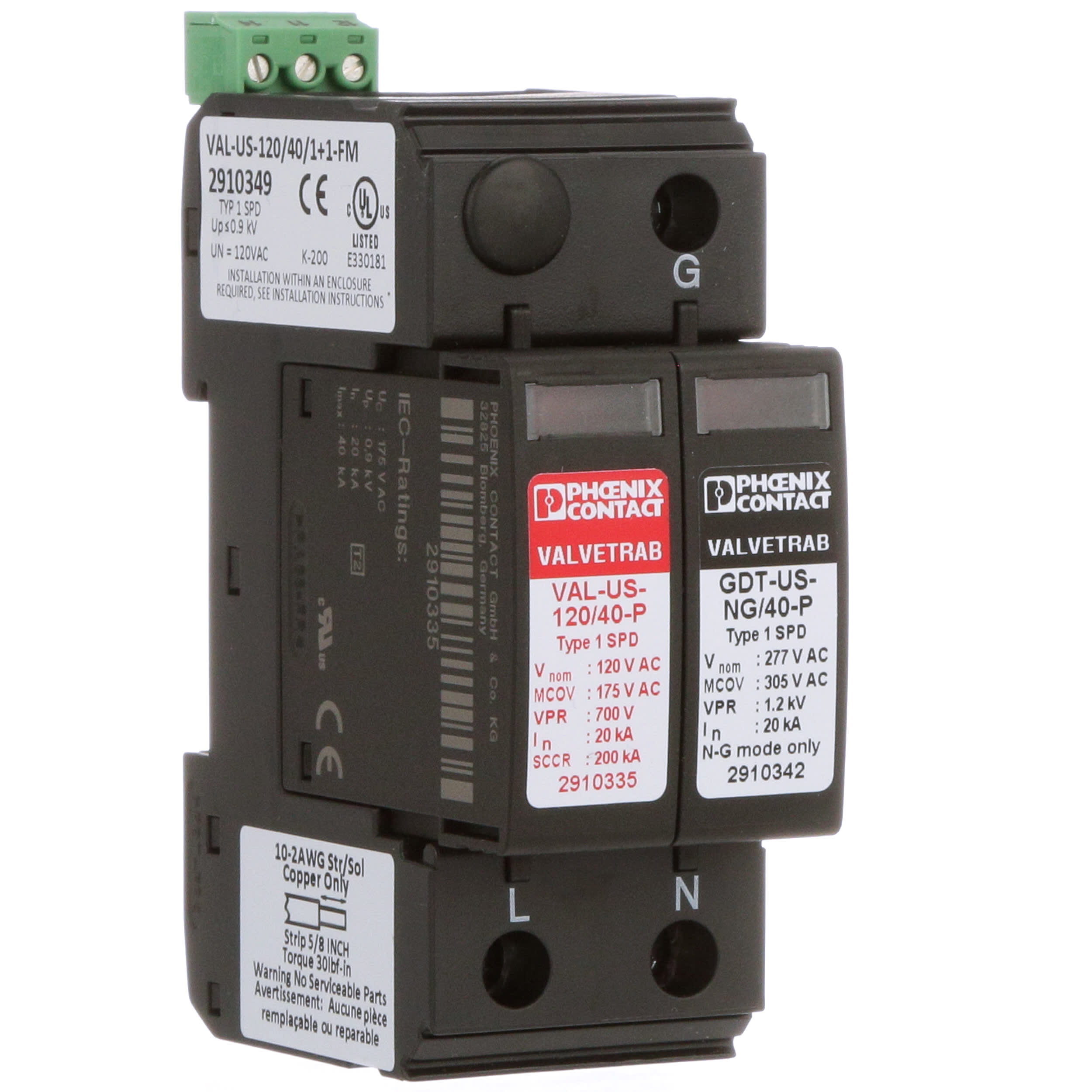

Type 2 surge protection device - VAL-US-120/40/1+1-FM | Phoenix Contact 2910349
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2910349 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2910349
| Part Name | 2910349 |
| Manufacturer | Phoenix Contact |
| Category | Circuit Breakers, Fuses & Protection |
| Max. Connectable Conductor Cross-section Multiple Wire | 25 |
| Fine Classification Of The Information Unit | Underwriters Laborotary/Underwriters Laborotary Recognized (UL/UR) |
| Max. Line Cross Section, Rigid | 35 |
| Width | 35.6 |
| Maximum Ambient Temperature (during Operation) | 80 |
| GTIN | 4055626444901 |
| Height | 97.18624 |
| Type Of Certificate | UL/UR |
| Degree Of Protection (ip), Mounted | IP20 |
| Product Description | Surge protection device |
| Gtin (ean) Code | 4055626444901 |
| Internal Article Number | 2910349 |
| Number Of The Executions Of The Housing Parts | 0 |
| Min. Connectable Conductor Cross-section Multiple Wire | 1.5 |
| Type Of Electrical Terminal | Screw connection |
| Depth | 65.55 |
| Type Of Enveloping Body | enveloping body cuboid |
| Manufacturer Product Designation | Surge protection device |
| RoHS | True |
| Assembly Type | Top-hat rail TH35 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 2910349 |
| Minimum Ambient Temperature (during Operation) | 5 |
| Min. Relative Humidity (operation) | 5 |
| Net Weight | 0.2252 |
| Insulation Stripped Length | 16 |
| Min. Line Cross Section, Rigid | 1.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
