292168-5
SnapVerified
Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 292168-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

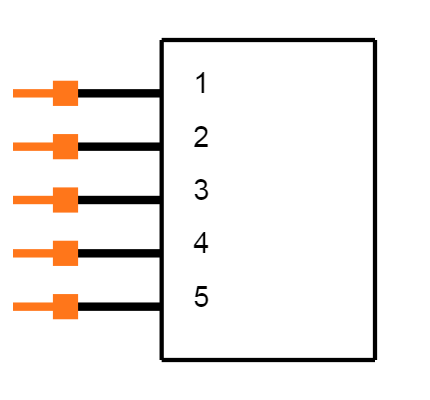

Symbol
No web preview
This Symbol is Available for

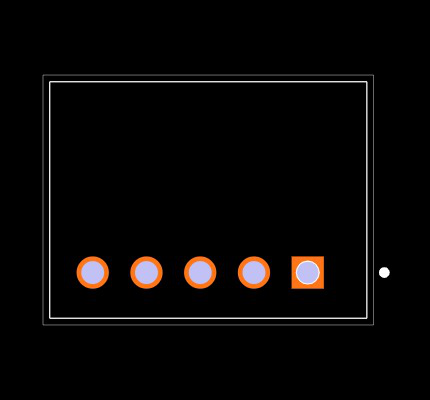

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 292168-5
| Part Name | 292168-5 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .079 |
| Housing Material | PBT GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 125 |
| Number of Positions | 5 |
| Contact Design | Round Post |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .031 – .063 |
| Termination Post & Tail Length | .126 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | .177 |
| TE Internal Number | 292168-5 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Connector Height | .346 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Connector Width | 4 |
| Contact Mating Area Plating Material Finish | Matte |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Contact Shape | Round |
| PCB Contact Termination Area Plating Material Thickness | 1 – 2 |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | Without |
| Connector Length | 11.8 |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -40 – 105 |
| Packaging Method | Box & Tube |
| Packaging Quantity | 40 |
| Contact Layout | Inline |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Header Type | Partially Shrouded |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 39.37 – 78.73 |
| Contact Current Rating (Max) (A) | 4 |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 28 – 22 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
