292331-3
Conn Battery Interconnect 3 POS 1.6mm Solder ST SMD 3 Terminal 1 Port T/R
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 292331-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

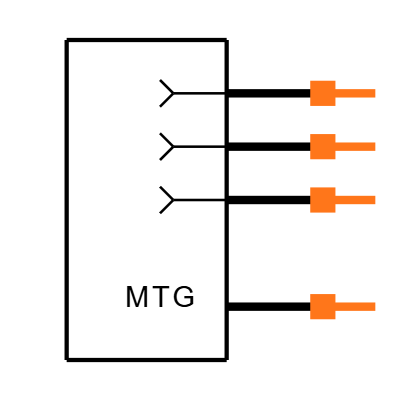

Symbol
No web preview
This Symbol is Available for

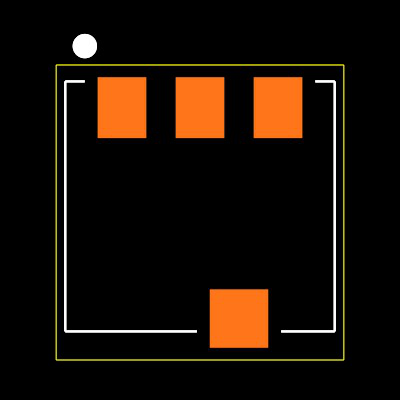

Footprint
No web preview
This Footprint is Available for

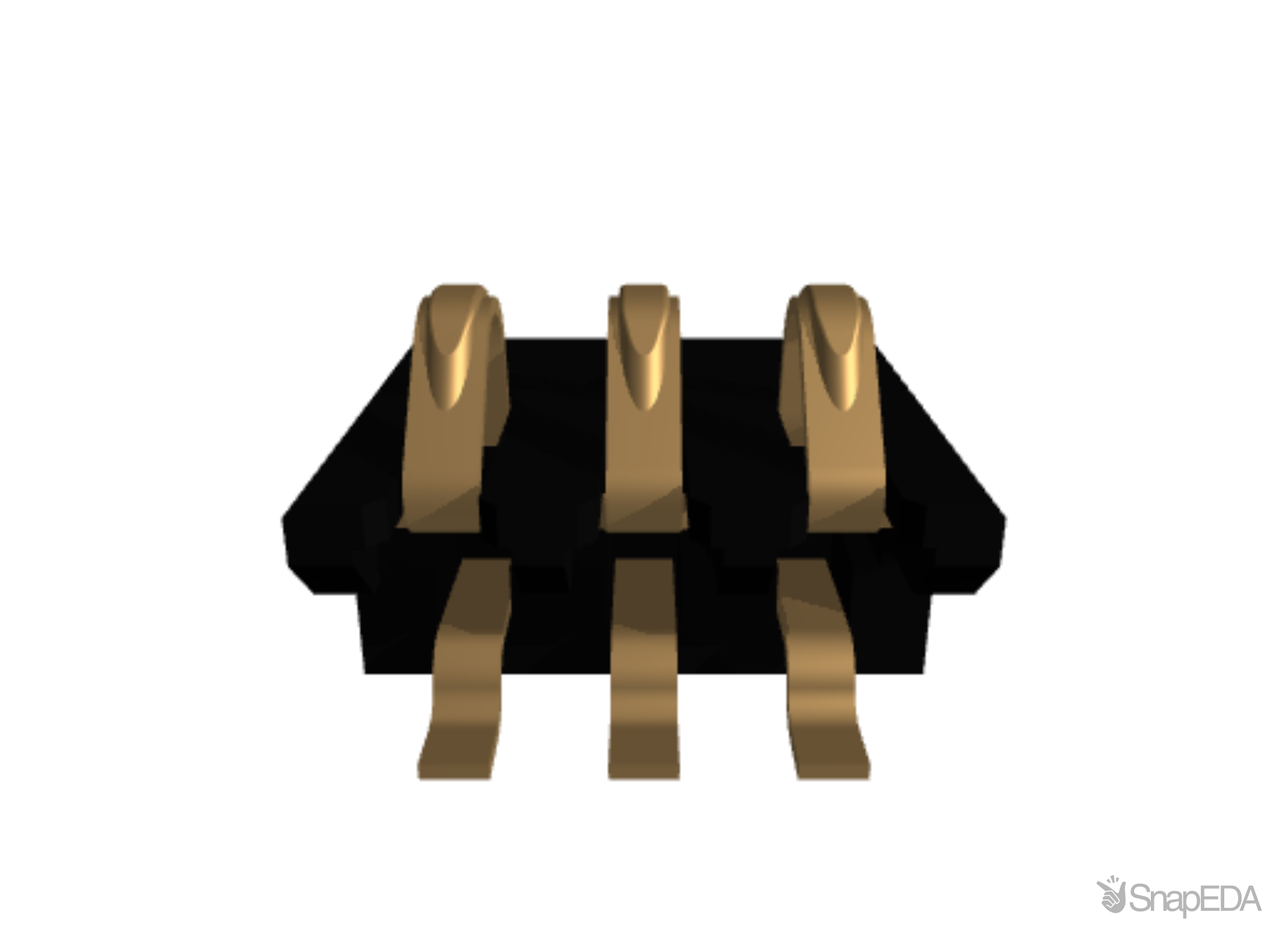

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 292331-3
| Part Name | 292331-3 |
| Manufacturer | TE Connectivity |
| PCB Mount Retention | Without |
| 端子の下地めっきの材料 | Nickel |
| Centerline (Pitch) | .063 |
| Operating Temperature Range | -40 – 185 |
| Circuit Application | Signal |
| Mobile Phone Battery Connector | Yes |
| Contact Plating Material | Gold |
| TE Internal Number | 292331-3 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) (A) | 2 |
| Contact Mating Area Plating Material Thickness | .76 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Contact Underplating Material | Nickel |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Sealable | No |
| Connector Style | Receptacle |
| Number of Positions | 3 |
| RoHS | True |
