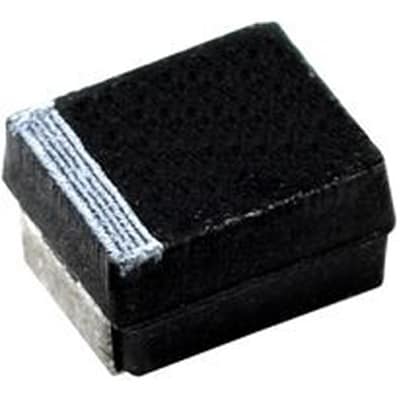

293D107X9010D2TE3
Capacitor;Tantalum;Cap 100 uF;Tol 10%;Vol-Rtg 10 VDC;SMT;7343-31;ESR 0.6 Ohms | Sprague / Vishay 293D107X9010D2TE3
Availability: In Stock
Package Type: 2917
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 293D107X9010D2TE3 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

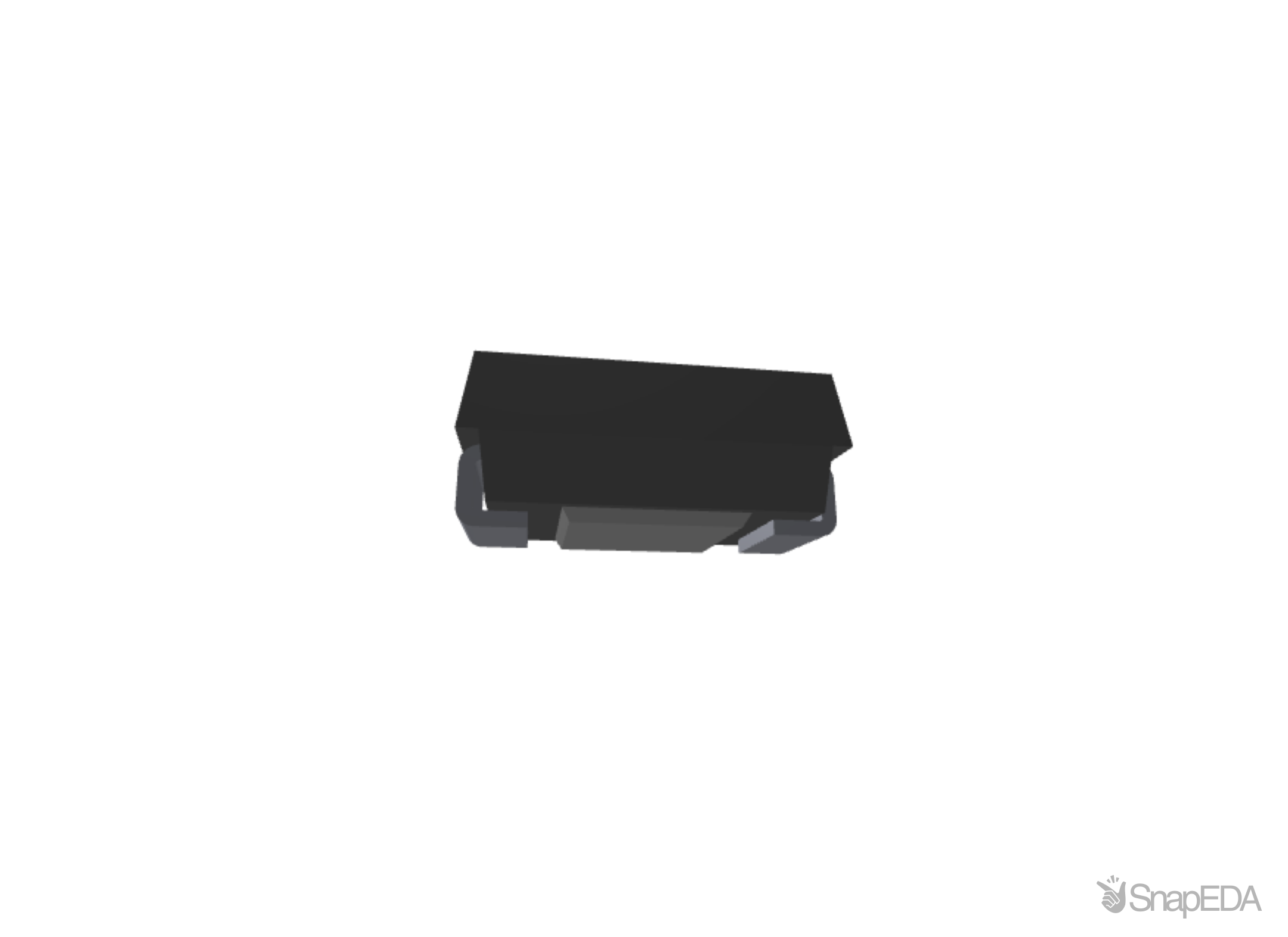

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 293D107X9010D2TE3
| Part Name | 293D107X9010D2TE3 |
| Manufacturer | Vishay |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dissipation Factor | 8 (%) |
| Maximum Operating Temperature | +125 (°C) |
| Dimensions | 7.3 x 4.3 x 2.8 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Series | 293D |
| Tolerance (Plus) | +10 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Depth | 4.3 (mm) |
| Equivalent Series Resistance | 600 (mΩ) |
| Height | 2.8 (mm) |
| Capacitance | 100 (µF) |
| Length | 7.3 (mm) |
| Voltage (V) | 10 (V dc) |
| Leakage Current (A) | 10 μA |
| Electrolyte Type | Solid |
| Tolerance (Minus) | -10 (%) |
| Technology | MnO2 |
| Terminal Type | Surface Mount |
| Package/Case | 7343-31 |
