2N5461
TRANSISTOR JFET POLARITY P; Transistor Type:JFET; Breakdown Voltage Vbr:40V; Zero Gate Voltage Drain Current Idss:-2mA to -9mA; Gate-Source Cutoff Voltage Vgs(off) Max:7.5V; Power Dissipation Pd:350mW; Operating Temperature Range:-55°C to +150°C; Transistor Case Style:TO-92; No. of Pins:3; SVHC:No SVHC (19-Dec-2011); Current Idss Max:9mA; Current Idss Min:2mA; Current Ig:10mA; Device Marking:2N5461; Drain Source Voltage Vds:40V; No. of Transistors:1; Package / Case:TO-92; Power Dissipation Pd:350mW; Power Dissipation Ptot Max:350mW; Termination Type:Through Hole; Transistor Polarity:P Channel
Availability: Out of Stock
Package Type: E-PKG AXIAL-LEADED-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2N5461 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

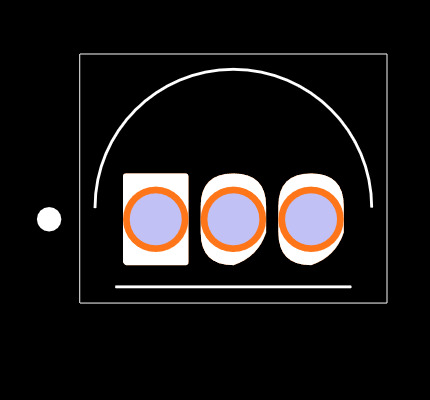

Footprint
No web preview
This Footprint is Available for

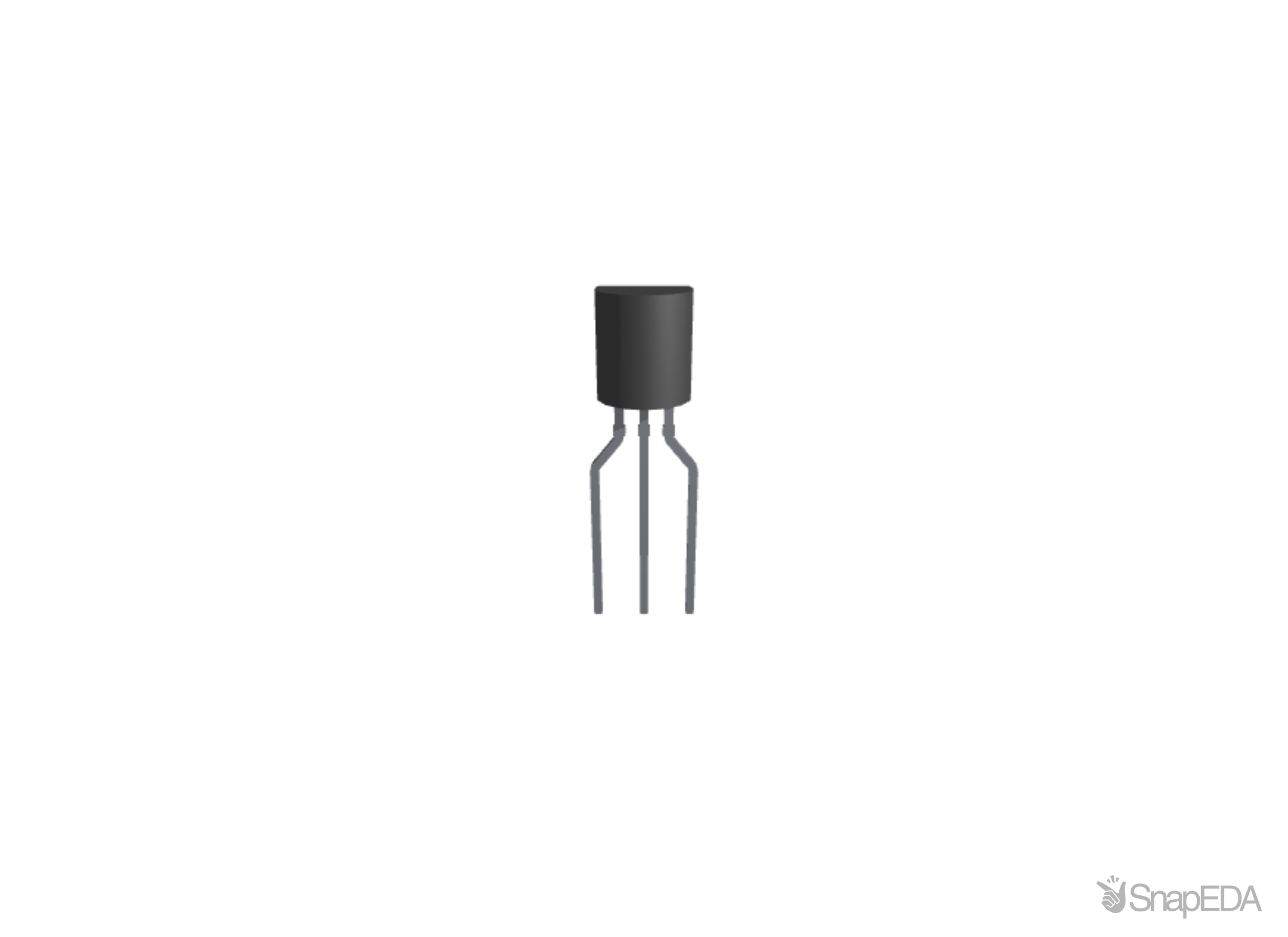

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2N5461
| Part Name | 2N5461 |
| Manufacturer | Fairchild Semiconductor |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the 2N5461
If you experienced any issues with the symbol or footprint, please report it.
