2R5TPF470M7L

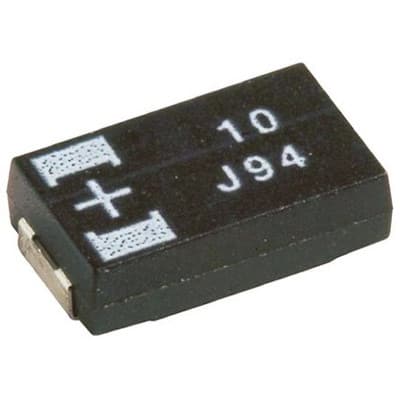

470uF SMD Solid Polymer Tantalum Capacitor, 2.5 V dc +/-20%, POSCAP Series | Panasonic Electronic Components 2R5TPF470M7L
Availability: In Stock
Package Type: 7343-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2R5TPF470M7L by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2R5TPF470M7L
| Part Name | 2R5TPF470M7L |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tolerance Plus | +20 (%) |
| Dimensions | 7.3 x 4.3 x 2.8 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±20 (%) |
| Package Case | D3L |
| Series | POSCAP TPF |
| Leakage Current (A) | 117.5 μA |
| Depth | 4.3 (mm) |
| Equivalent Series Resistance | 7 (mΩ) |
| Height | 2.8 (mm) |
| Capacitance | 470 (µF) |
| Length | 7.3 (mm) |
| Voltage (V) | 2.5 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +105 (°C) |
| Technology | Polymer |
| Terminal Type | Surface Mount |
| Tolerance Minus | -20 (%) |
