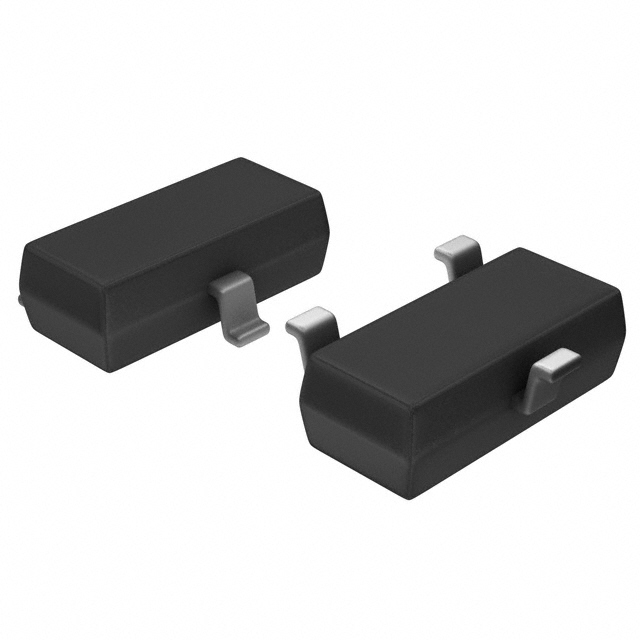

2SC2412KT146
Trans GP BJT NPN 50V 0.15A 3-Pin SMT T/R
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2SC2412KT146 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2SC2412KT146
| Part Name | 2SC2412KT146 |
| Manufacturer | Rohm |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Transistor Type | NPN |
| Dimensions | 1.1 x 2.9 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | 50 V |
| Maximum Operating Frequency | 180 MHz |
| Maximum Emitter Base Voltage (V) | 7 V |
| Package Type | SMT |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 150 mA |
| Maximum Collector Base Voltage (V) | 60 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
