2SMPP-02
Pressure Sensor 5.37PSI (37kPa) Vented Gauge Male - 0.1" (2.59mm) Tube 0 mV ~ 31 mV 6-SMD Module
Availability: Out of Stock
Package Type: SMD-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2SMPP-02 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

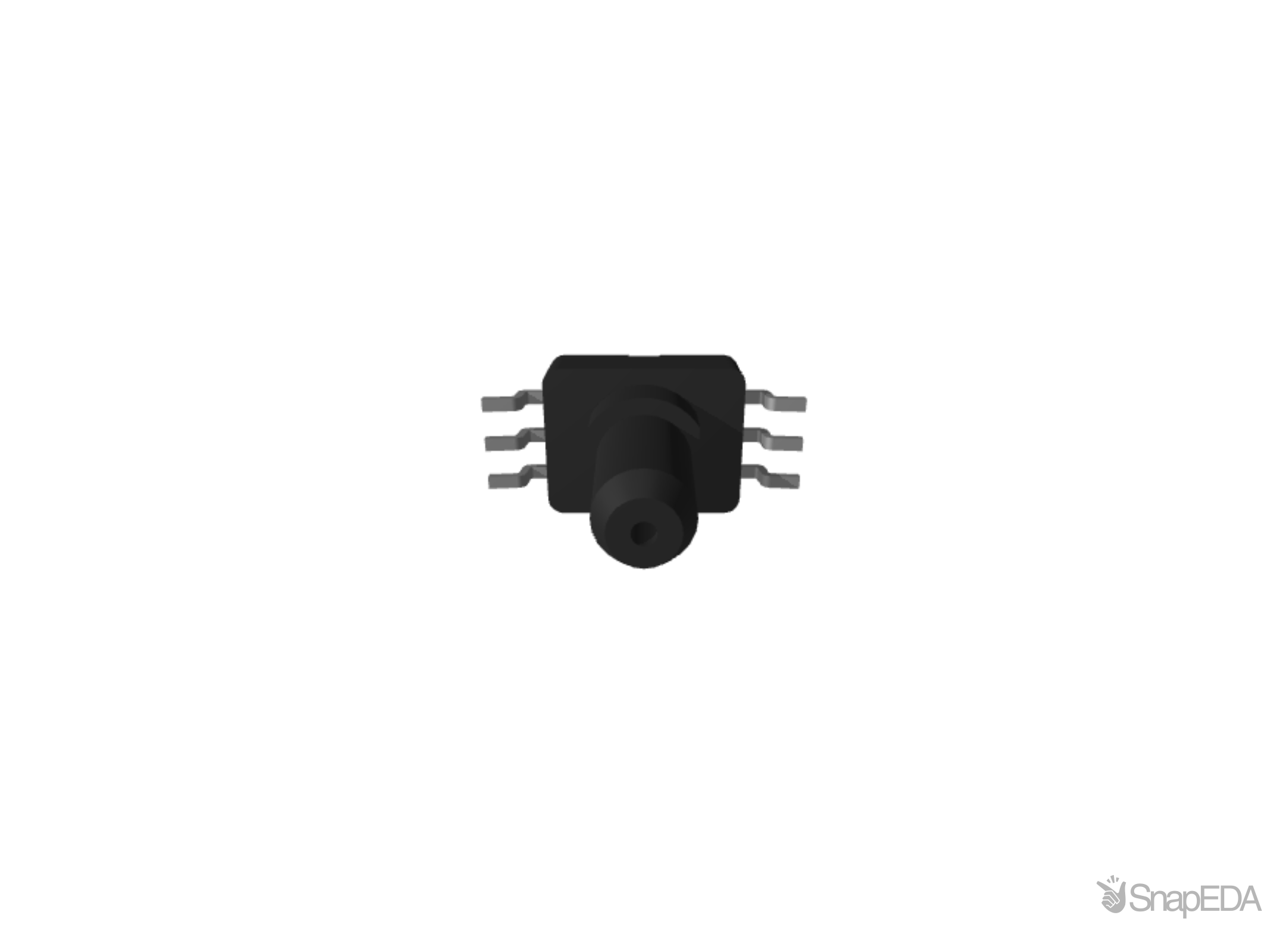

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2SMPP-02
| Part Name | 2SMPP-02 |
| Manufacturer | Omron |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Current (A) | 130 μA |
| Mounting Type | Surface Mount |
| Electrical Connection | PCB |
| Output Type | Amplified |
| Maximum Pressure Reading | 37 (kPa) |
| Housing Material | PPS |
| Minimum Pressure Reading | 0 (bar) |
| Pressure Reading Type | Relative |
| Minimum Operating Temperature | 0 (°C) |
| Maximum Operating Temperature | +50 (°C) |
| Media Measured | Air |
No issues have been reported for the 2SMPP-02
