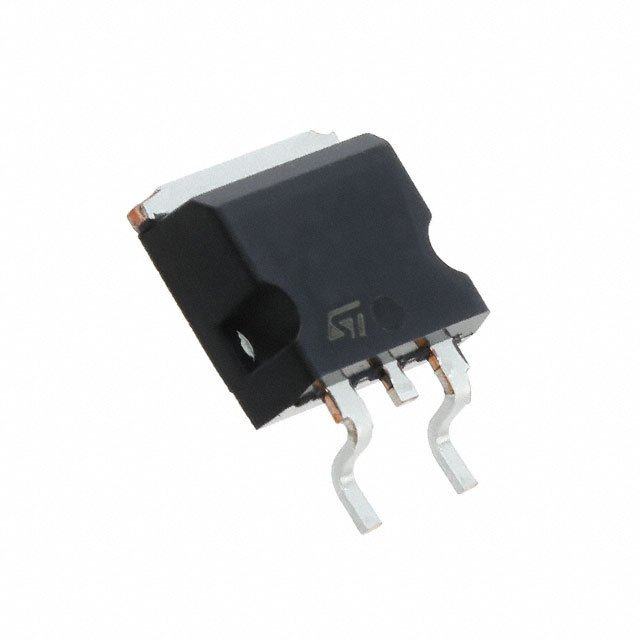

2STBN15D100
Bipolar (BJT) Transistor NPN - Darlington 100 V 12 A - 70 W Surface Mount D²PAK (TO-263)
Availability: In Stock
Package Type: TO-263-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2STBN15D100 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

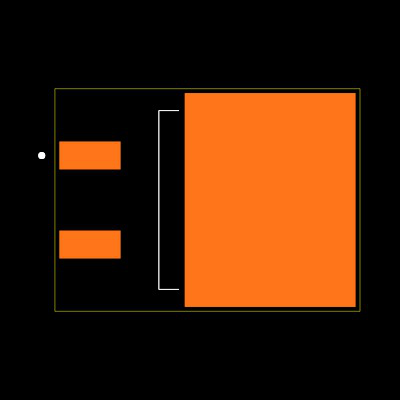

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2STBN15D100
| Part Name | 2STBN15D100 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Dc Current Gain (A) | 750 |
| Transistor Type | NPN |
| Dimensions | 10.4 x 9.35 x 4.37 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 70 W |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | 100 V |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | D2PAK (TO-263) |
| Number Of Elements Per Chip | 2 |
| Maximum Dc Collector Current (A) | 15 A |
| Maximum Collector Base Voltage (V) | 100 V |
| Pin Count | 3 |
| Transistor Configuration | Common Emitter |
Inventory for the 2STBN15D100 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
860
|
|
Visit Site | |
|
★ Featured
|
1,370
|
315 x $0.96
|
Visit Site | |
| Arrow Electronics |
2,000
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
12,098
|
|
Visit Site | |
| Newark |
12,098
|
|
Visit Site | |
| RS UK |
|
|
Visit Site | |
| Verical |
2,000
|
1,000 x $0.47
|
Visit Site | |
| element14 Singapore |
12,098
|
|
Visit Site |
No issues have been reported for the 2STBN15D100
If you experienced any issues with the symbol or footprint, please report it.
