2STC5242

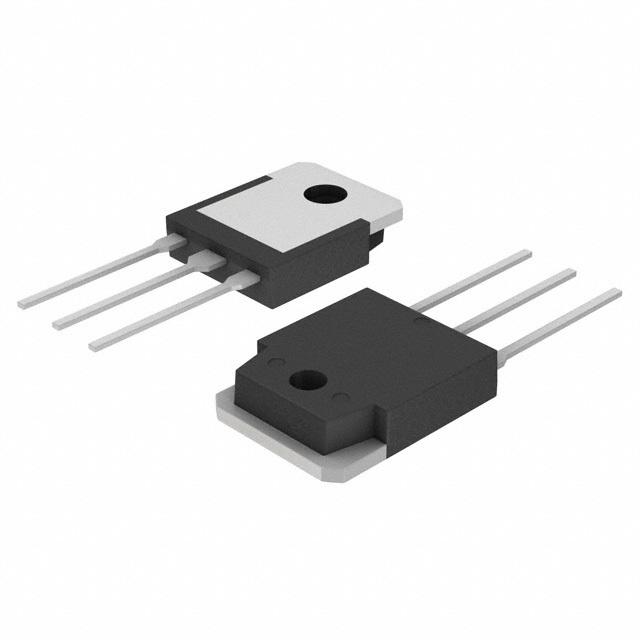

TRANSISTOR, NPN TO-3P; Transistor Type:Bipolar; Transistor Polarity:NPN; Collector-to-Emitter Breakdown Voltage:230V; Current Ic Continuous a Max:8A; Voltage, Vce Sat Max:3V; Power Dissipation:130W; Min Hfe:80; ft, Typ:30MHz; Case Style:TO-3P; Termination Type:Through Hole; Current Ic Max:15A; Current Ic hFE:1A; Power, Ptot:130W; Voltage, Vcbo:230V
Availability: In Stock
Package Type: TO-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2STC5242 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

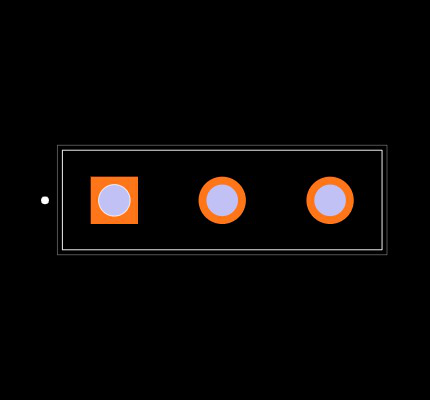

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2STC5242
| Part Name | 2STC5242 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | NPN |
| Dimensions | 18.7 x 15.8 x 5 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 130 W |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | 230 V |
| Maximum Operating Frequency | 30 MHz |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | TO-3P |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 15 A |
| Maximum Collector Base Voltage (V) | 230 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
