2VR1

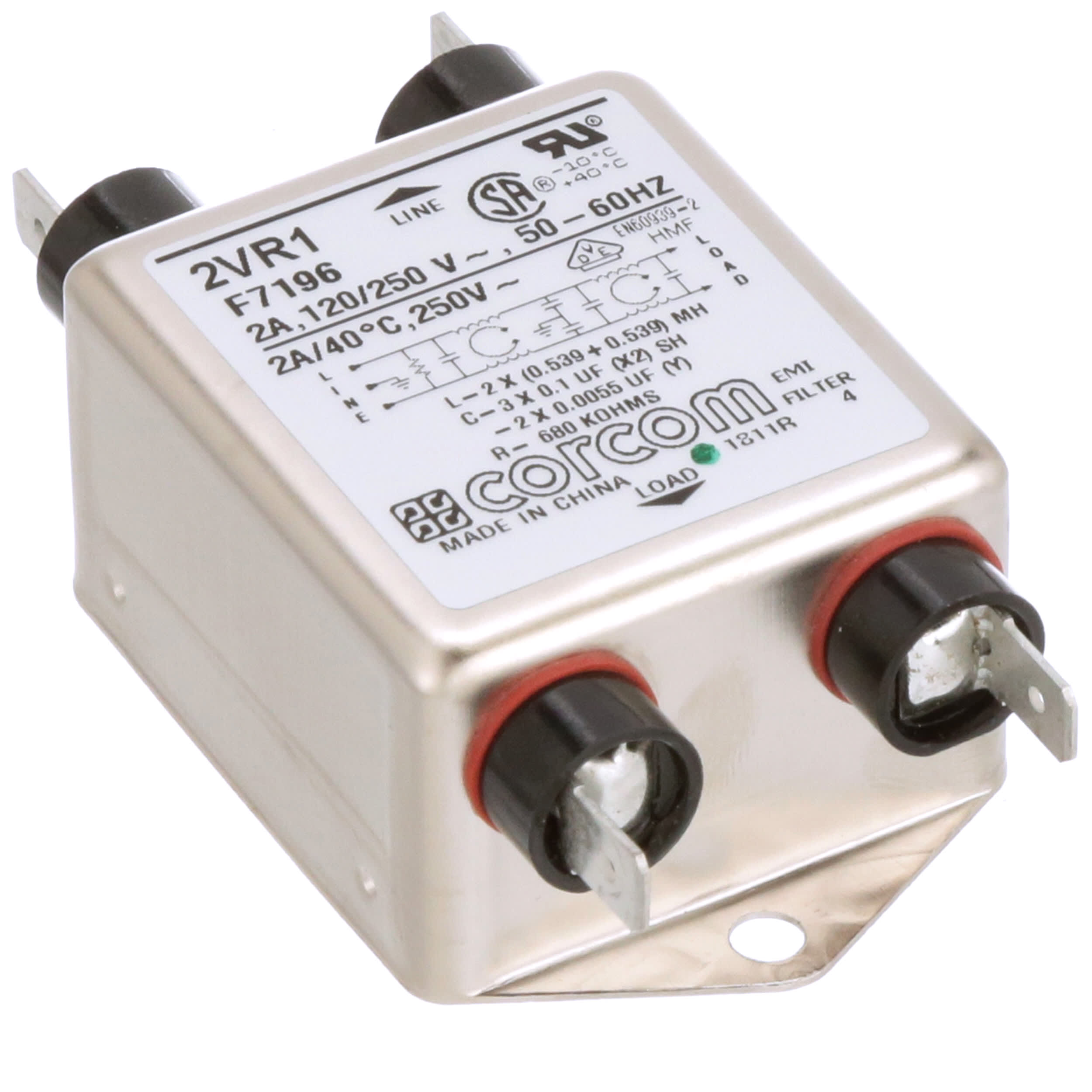

Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2VR1 by TE Connectivity / Corcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2VR1
| Part Name | 2VR1 |
| Manufacturer | TE Connectivity / Corcom |
| Mount Style | Flanged |
| Current Rating (A) | 1 |
| Operating Temperature Range | -10 – 40 |
| TE Internal Number | 6609032-3 |
| Output Type | Wire Lead |
| Leakage Current (Max) (250VAC, 50Hz) (A) | .7 |
| Leakage Current (Max) (120VAC, 60Hz) (A) | .4 |
| Ground Choke Option | No |
| Voltage (Max) (V) | 250 |
| Input Type | Wire Lead |
| Filter Type | Power Line |
| Filtered | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 85.1 x 46 x 29.5 (mm) |
| Mounting Type | Flange Mount |
| Series | Corcom R |
| Maximum Current Rating (A) | 2 (A) |
| Termination Style | Fast-On |
| Length | 85.1 (mm) |
| Number Of Stages | Two Stage |
| Depth | 29.5 (mm) |
| Maximum Voltage Rating (V) | 250 V ac |
| Operating Frequency | 50/60 (Hz) |
| Number Of Phases | 1 |
