2W005G-E4/51

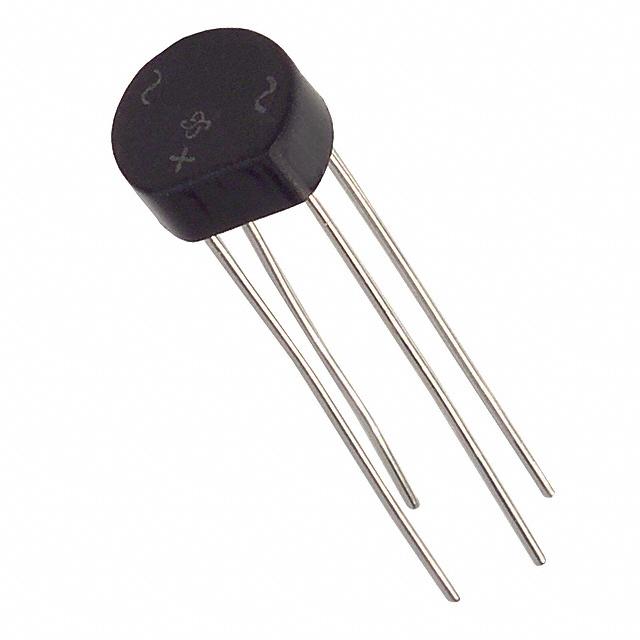

Bridge Rectifier Single Phase Standard 50 V Through Hole WOG
Availability: Out of Stock
Package Type: 4-4
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2W005G-E4/51 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2W005G-E4/51
| Part Name | 2W005G-E4/51 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 9.86 x 8.84 x 5.6 (mm) |
| Bridge Type | Single Phase |
| Width | 8.84 (mm) |
| Peak Average Forward Current (A) | 2 (A) |
| Height | 5.6 (mm) |
| Peak Reverse Current (A) | 500 (µA) |
| Diode Technology | Silicon Junction |
| Length | 9.86 (mm) |
| Package Type | WOG |
| Peak Reverse Repetitive Voltage (V) | 50 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 1.1 (V) |
| Mounting Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Peak Non Repetitive Forward Surge Current (A) | 60 (A) |
