3-102203-4
SnapVerified
MODU R/A SRHDR SHRD, 03 MODII HDR SRRA SHRD .100CL | TE Connectivity 3-102203-4
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-102203-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

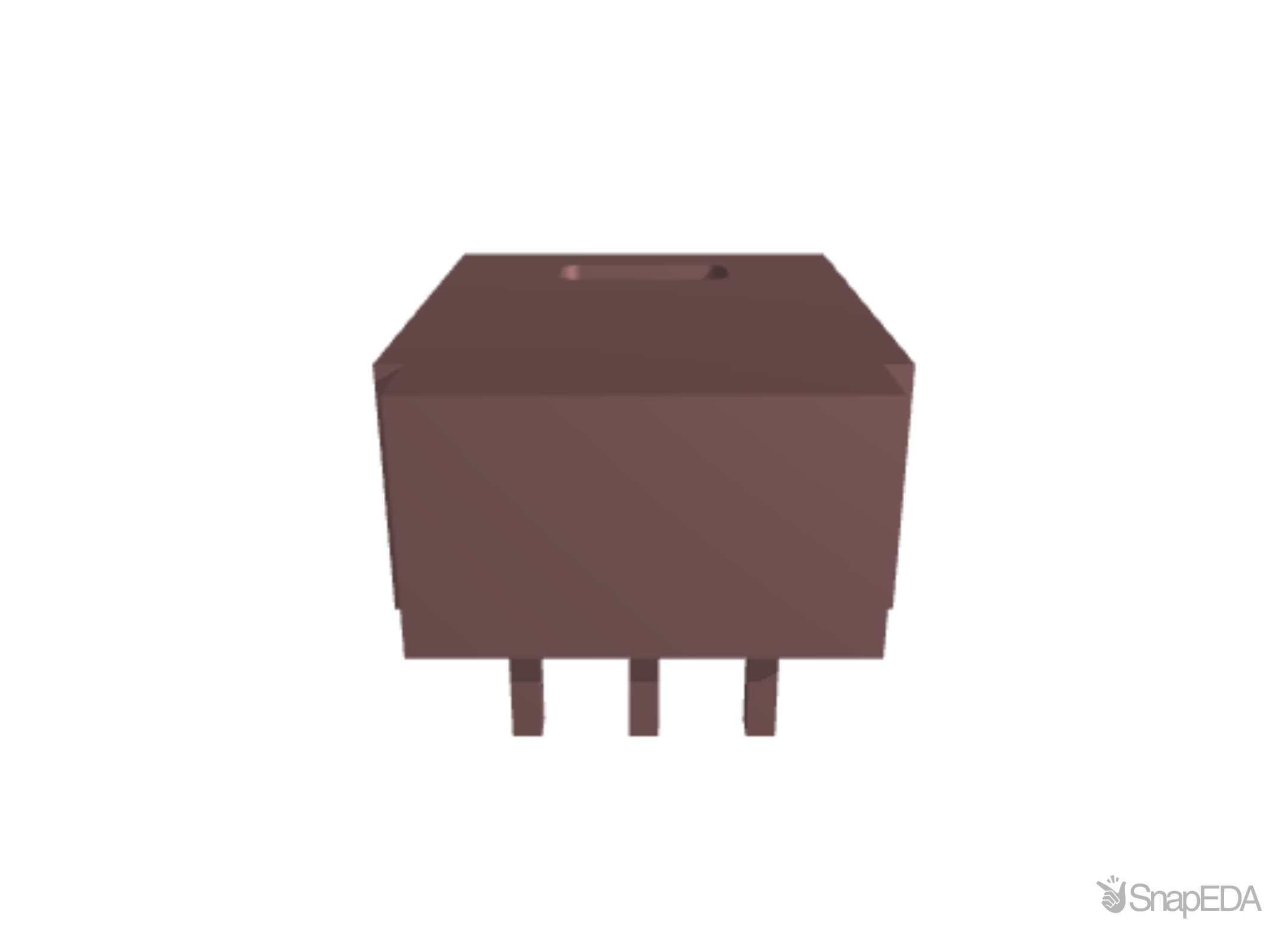

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-102203-4
| Part Name | 3-102203-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .1 |
| Dielectric Withstanding Voltage (V) | 750 Vrms |
| Number of Shrouded Sides | 4-Sided |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | .1 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 3 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .055 |
| Termination Post & Tail Length | .11 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | 6.1 |
| TE Internal Number | 3-102203-4 |
| PCB Mount Orientation | Right Angle |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 100 – 200 |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Tube |
| Packaging Quantity | 50 |
| Solder Process Feature | Board Standoff |
| 端子の下地めっきの材料 | Nickel |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | 1.778 |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Phosphor Bronze |
| High Temperature Housing | No |
| Post Size | .025 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 3 |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Connector Profile | Standard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
